Description
READY-ASSEMBLED 51.2 V LIFEPO4 SOLAR BATTERY · 16.076 KWH · EUROPEAN SUPPLIER STOCK
A 16 kWh LiFePO4 battery for solar self-consumption and backup-ready systems
SEPLOS MASON-314L-O combines 314 Ah LiFePO4 cells, a battery-management system, active balancing and a colour touchscreen in one upright low-voltage cabinet. Its 16.076 kWh nominal energy can store daytime photovoltaic surplus for evening consumption or support selected backup circuits when it is paired with a compatible inverter. The inverter, installation and commissioning are separate project components.

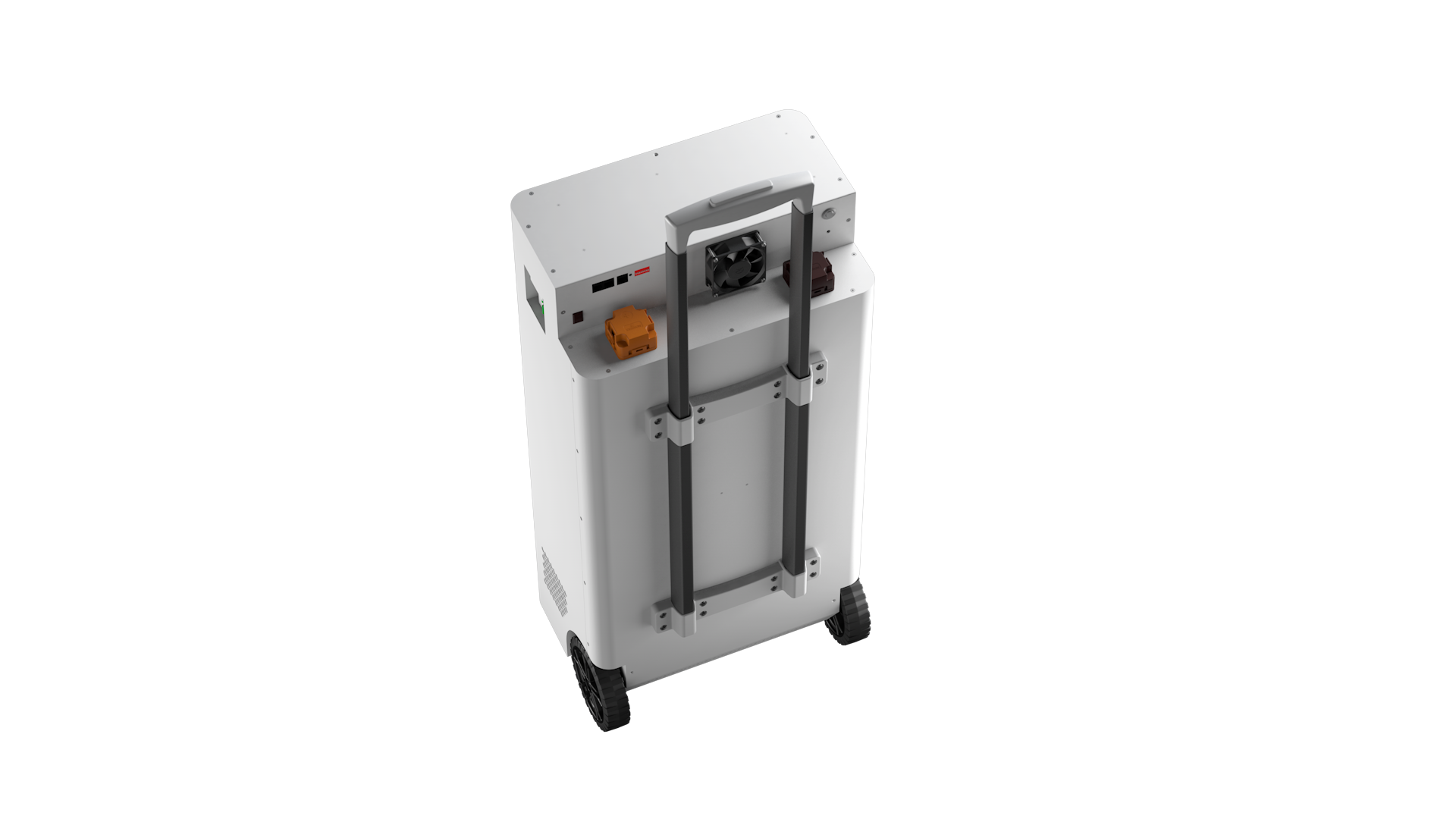

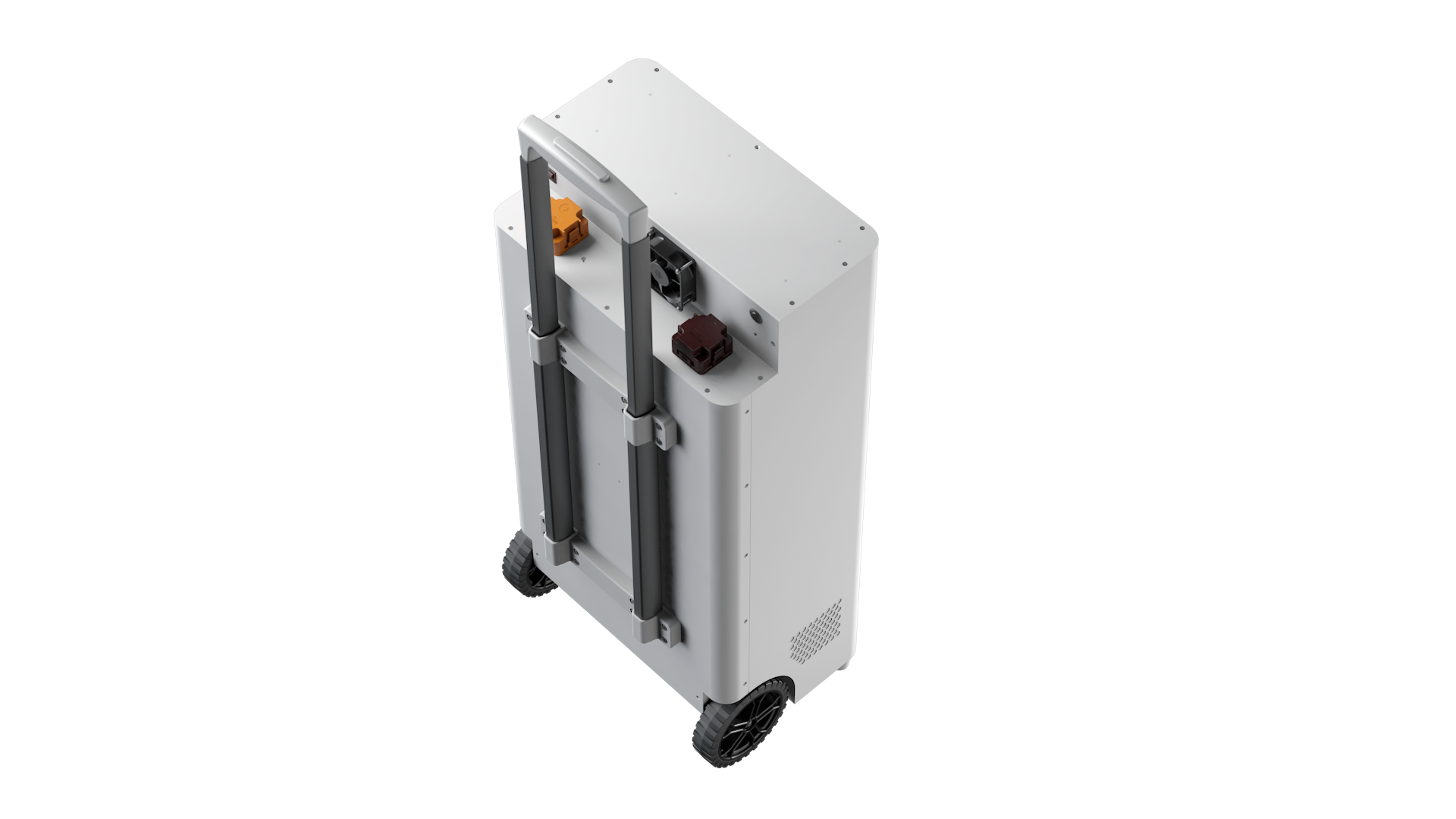

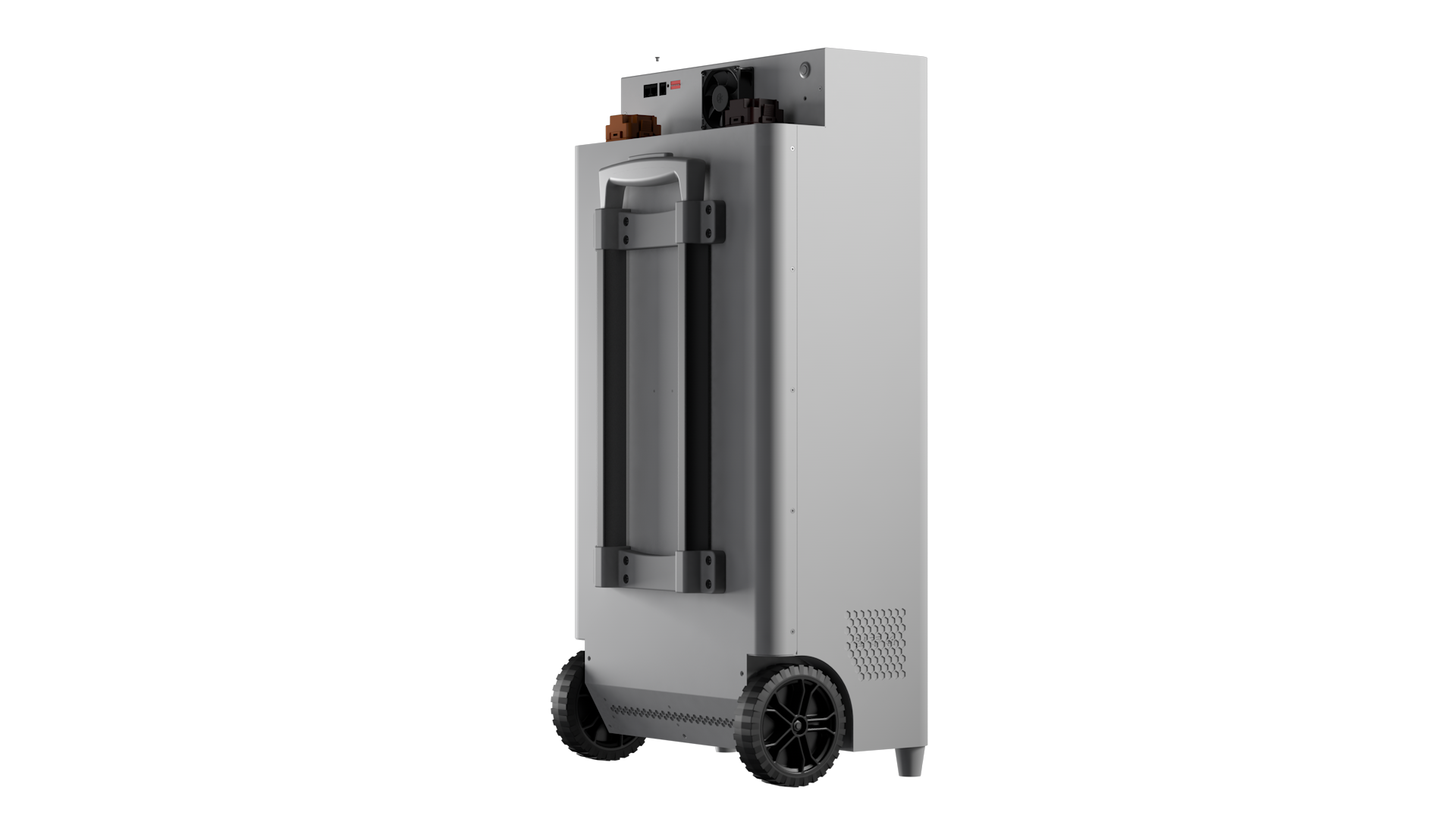

The cabinet has wheels and a telescopic pull handle for controlled positioning before electrical connection. It is not a portable power station and must not be moved while operating. Once installed, the 121 kg battery belongs on a stable, non-combustible surface in a dry, ventilated technical area.
Why choose SEPLOS MASON-314L-O?
16.076 kWh in a single cabinet
A single 51.2 V / 314 Ah pack provides substantial energy capacity without building a battery from loose cells. Capacity and inverter power remain separate design values: the battery stores energy, while the selected inverter determines AC output and operating modes.

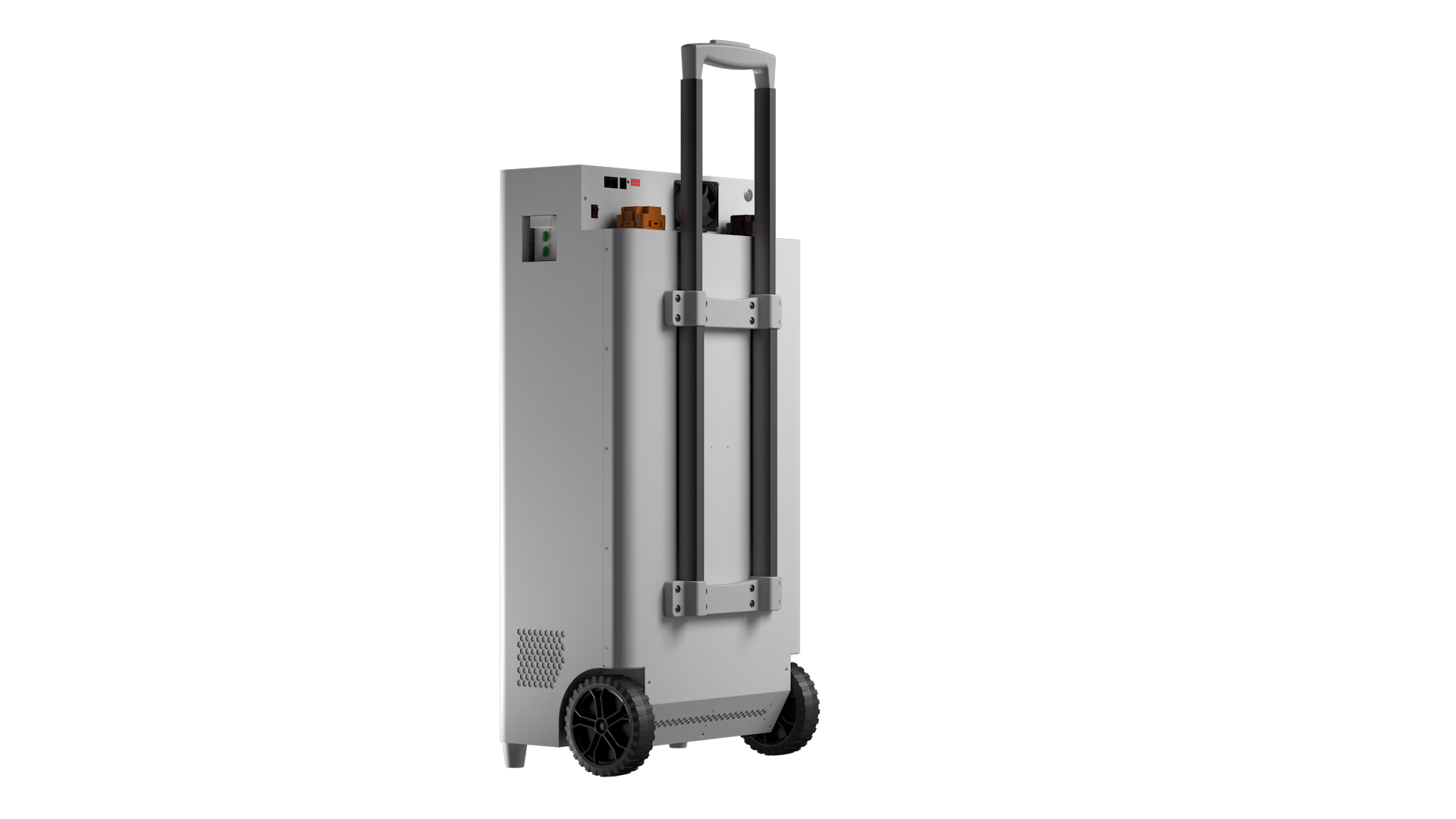

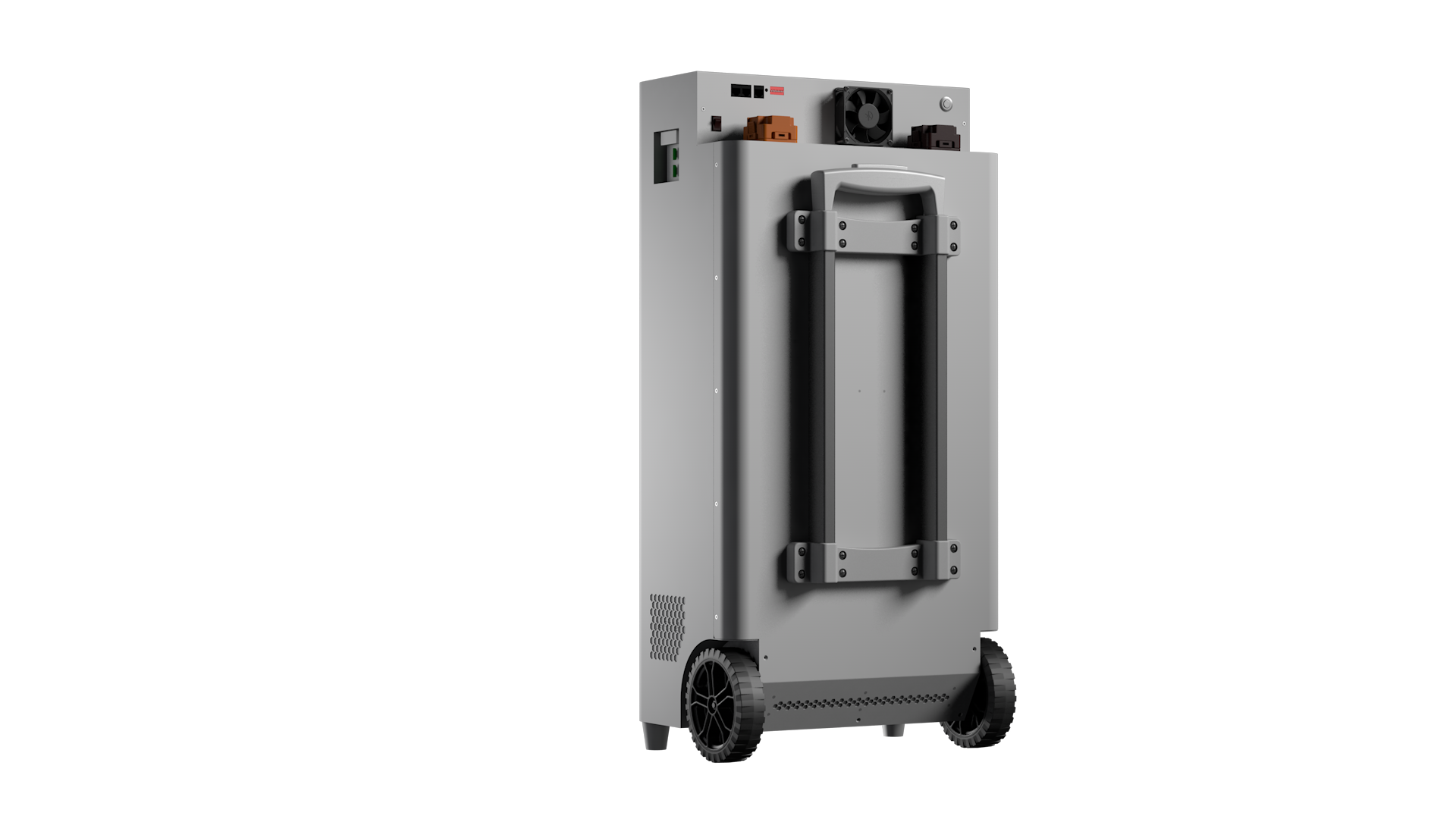

Pull handle and wheels simplify positioning
The trolley-style cabinet is easier to move into its final service position than a plain 121 kg enclosure. The handle and wheels help with indoor positioning only; suitable lifting equipment, a safe route and secure final placement are still required.

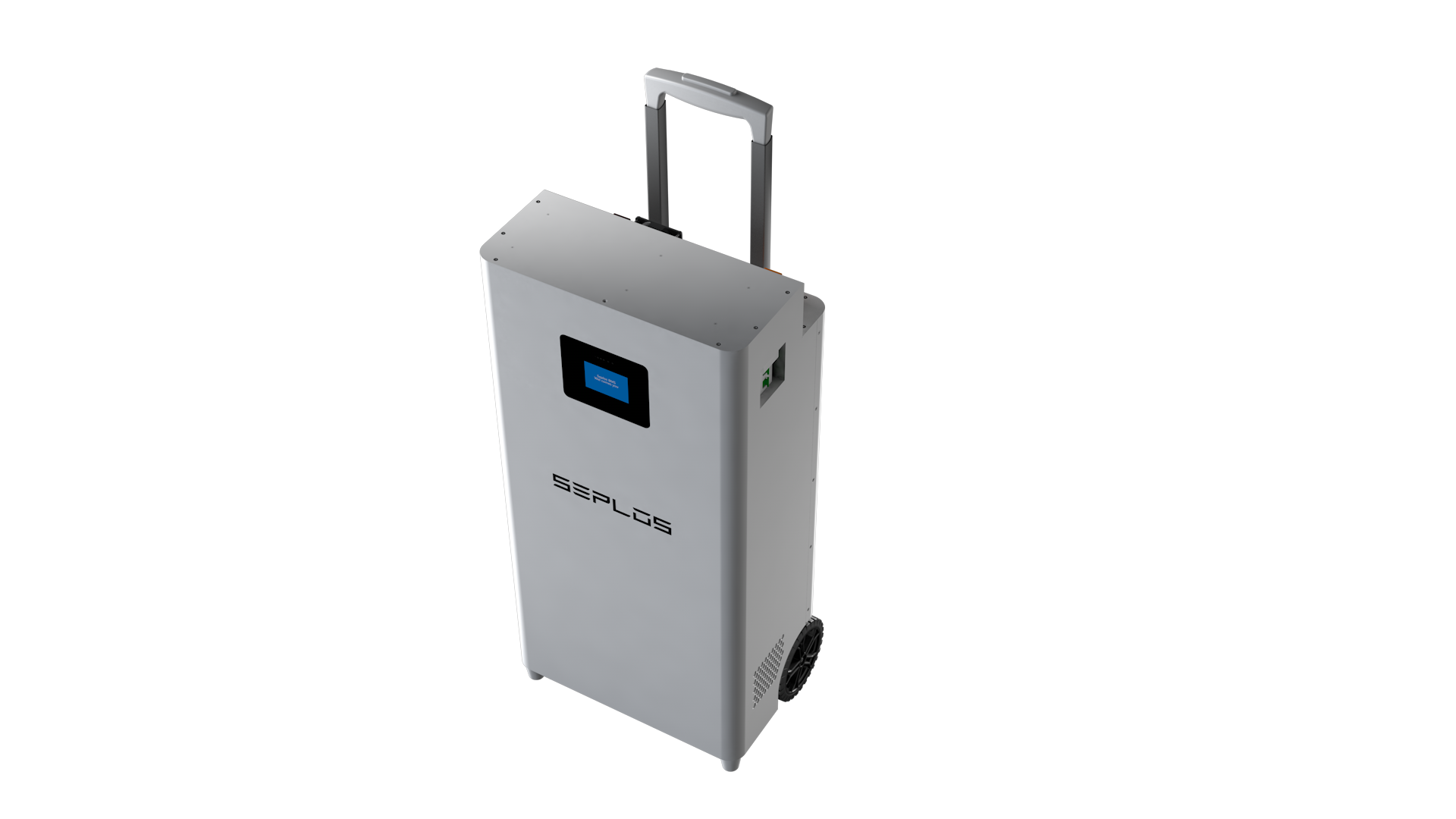

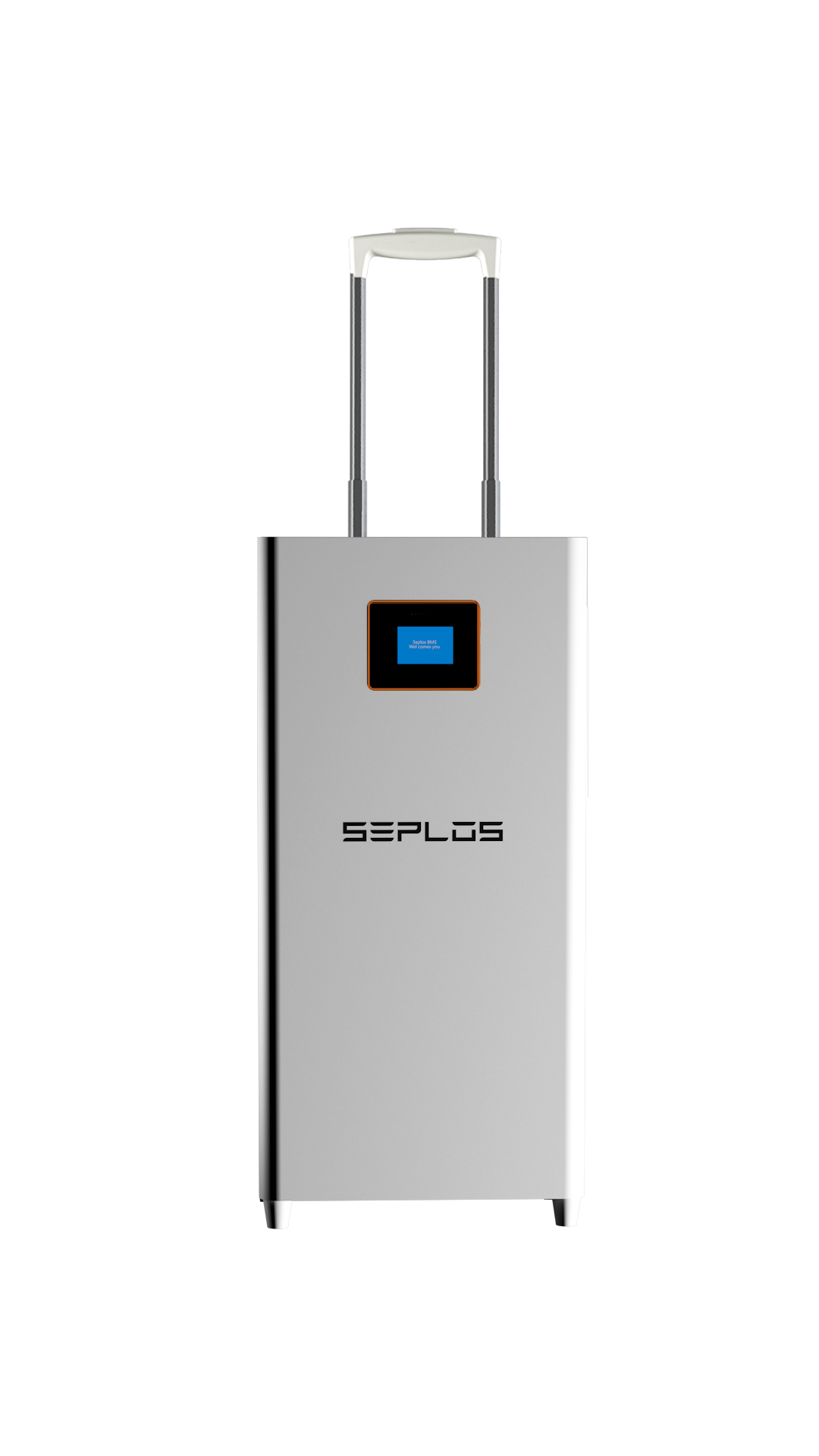

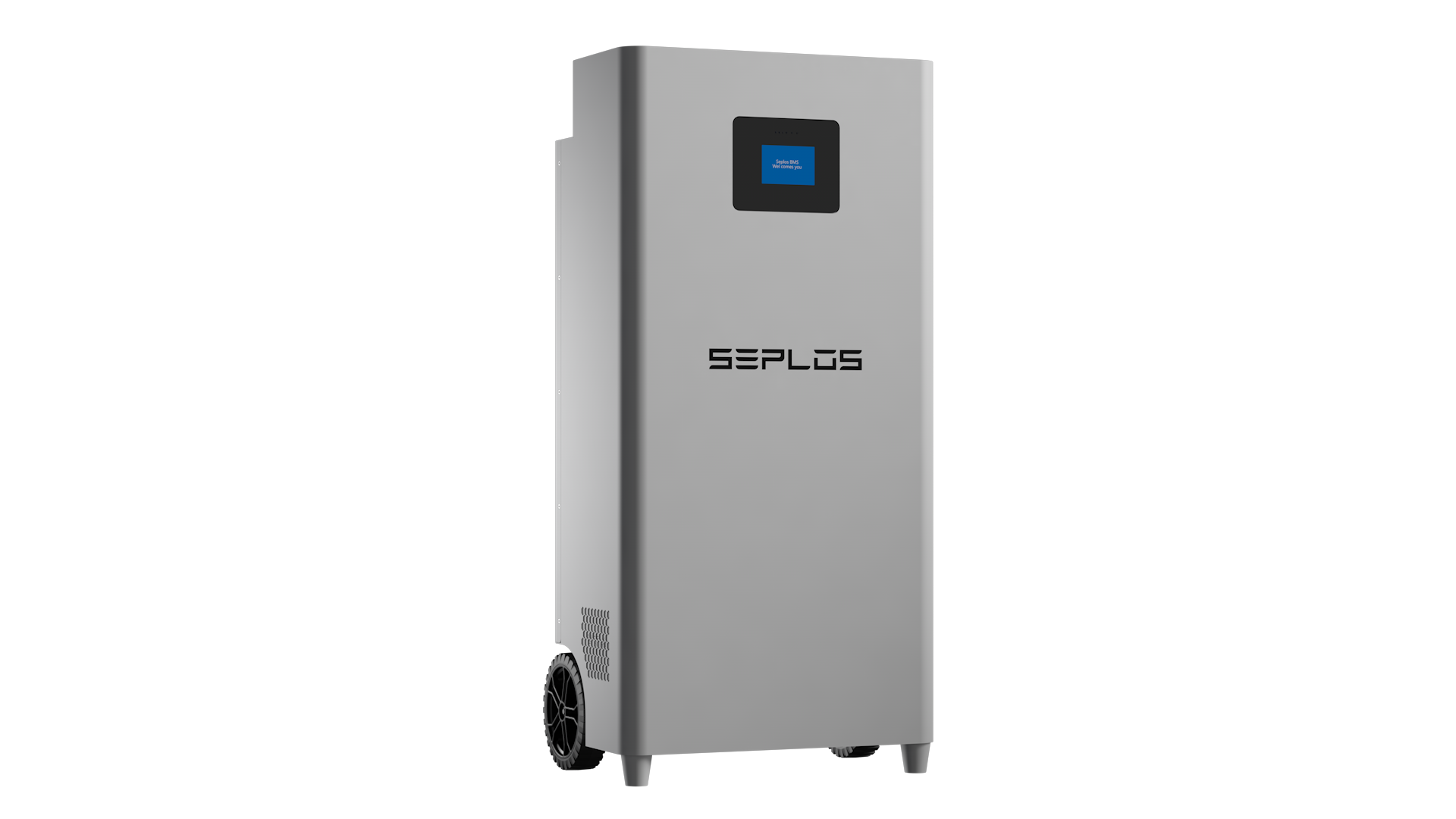

Colour touchscreen for local status checks
The front display gives the installer a convenient local view of battery status. Commissioning should still record pack voltage, cell-voltage spread, temperatures, current limits, communication state, inverter profile and serial number.
Active balancing for large 314 Ah cells
The supplied specification describes an active-balancing board capable of operating up to six channels at 2.5 A per channel. Active balancing helps manage cell-voltage differences, but it does not replace correct settings, matched cells or professional commissioning.
CAN and RS485 communication
The BMS communicates through CAN and RS485. Matching connectors do not prove protocol compatibility: the inverter model, firmware, BMS profile and cable pinout must all be checked before dispatch.
Model-specific technical and conformity documents
The available document set names MASON-314L-O directly and includes the specification, an EMC conformity certificate and report, an EN 62619:2022 conformity certificate and a RoHS conformity certificate. Each document applies to the model and submitted sample or revision identified inside it.
Technical data from the supplied MASON-314L-O specification
| Model | SEPLOS MASON-314L-O |
|---|---|
| Chemistry and configuration | LiFePO4, 1P16S |
| Nominal energy | 16.076 kWh |
| Nominal voltage | 51.2 V |
| Nominal capacity | 314 Ah |
| Working-voltage range | 41.6-57.6 V |
| Recommended charge/discharge current | 157 A at 25 ±2 °C |
| Maximum charging current | 200 A at 25 ±2 °C |
| Working temperature | 0 to 60 °C charging; -30 to 60 °C discharging |
| Communication | CAN and RS485 |
| Dimensions | 893 × 444 × 278 mm |
| Product weight | 121 kg ±3 kg |
| Shipping package | 995 × 525 × 453 mm; 138.8 kg stated package weight |
| Cycle reference | 8,000 cycles to 70% state of health under the manufacturer’s stated conditions; not a time warranty |
The supplied specification and the current manufacturer page do not state the same ingress-protection code. WodaTherm™ therefore treats this version as indoor equipment and confirms the rating shown on the delivered unit and its batch documents instead of publishing an unsupported outdoor claim.
Inverter compatibility must be checked before ordering
MASON-314L-O is intended for a compatible low-voltage battery inverter or hybrid inverter. CAN or RS485 is only the physical communication layer; the correct protocol, firmware and pinout are equally important. Send us the inverter manufacturer, exact model, firmware where available, required backup mode and planned number of battery packs.
Do not connect photovoltaic strings directly to the battery. DC cables, isolation, over-current protection, earthing and inverter settings must be designed for the complete system. Parallel operation should use matching packs with compatible firmware and appropriate state-of-charge preparation.
Plan the storage from real energy use
A 16 kWh battery can shift a meaningful share of daytime solar production into the evening, but it does not guarantee whole-building backup or a particular runtime. Actual use depends on reserve settings, conversion losses, temperature, battery current limits, inverter power and the connected loads.
Start with recent consumption data, photovoltaic production, essential backup circuits and expected additions such as a heat pump or EV charger. WodaTherm™ can help compare the storage capacity with the available charging window and inverter power before the order is confirmed.
Installation, handling and safe operation
Professional installation and commissioning are required. Place the battery upright on a stable, non-combustible surface in a dry, ventilated technical space, maintain the prescribed clearances and protect the terminals and cables against impact. The wheels and pull handle are positioning aids, not permission to operate or transport a connected battery.
Do not install a damaged or deformed pack, bypass the BMS, disconnect live terminals or open the cell enclosure without an approved service procedure. Unusual heat, odour, deformation, impact damage or a persistent protection alarm requires isolation and technical assessment.
European stock, freight and commercial scope
This model is supplied from European warehouse stock; dispatch and freight timing are confirmed with the order. Heavy-goods delivery requires suitable access and a safe unloading point. Inspect the crate before acceptance and record visible impact, puncture, crushing or moisture with the carrier.
The product is the assembled battery pack described here. A compatible inverter, site cabling, switchboard work, lifting, installation and commissioning are not included unless expressly listed in the quotation. WodaTherm™ confirms the applicable warranty and the exact delivered document revision in the order.
Documents and project support
- MASON-314L-O technical specification
- EMC conformity certificate
- EMC test report
- EN 62619:2022 conformity certificate
- RoHS conformity certificate
Compare other solar batteries and battery storage, view the SEPLOS range, or send us your inverter and project details for a compatibility check.
