Wodaplug EOC 2-87MHz data passing thru Diplex filter DD8711f 3*F connectors, data / TV (DVB-T2) + SAT

Description

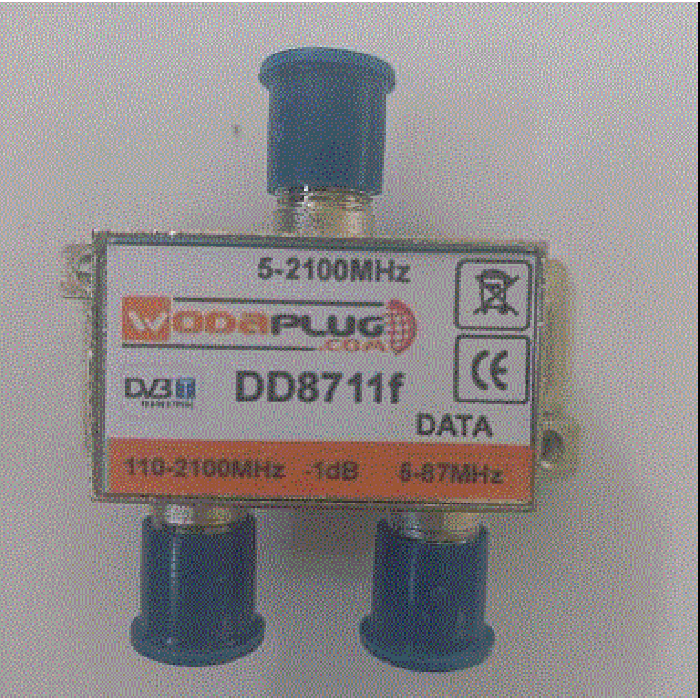

INDOOR DIPLEX FILTER DD 8711F

to split DATA and TV+SAT signal on the beginning of coax network and to divide SAT+TV and DATA signal before end TV (very low loss -1dB and very high signal separation)  or to realize BY PASS of an existing amplifier in your coax network.

high quality housing with 3* F connectors
high isolation
low price

Insertion loss
2-87MHz 0,6dB ±0,2dB
110-170MHz 0,6dB max.
170-750MHz 0,7dB max.
750-870MHz 0,8dB max.

870-2100MHz 0,9dB max.

Return loss all ports
2-87MHz 20dB min.
110-2100MHz 20dB -1,5dB/okt.

RFI shielding
4-21000MHz 100dB

Port 2-3 isolation
2-10MHz 55dB min.
10-100MHz 43dB min.
100-700MHz 48dB min.
700-2100MHz 43dB min.
