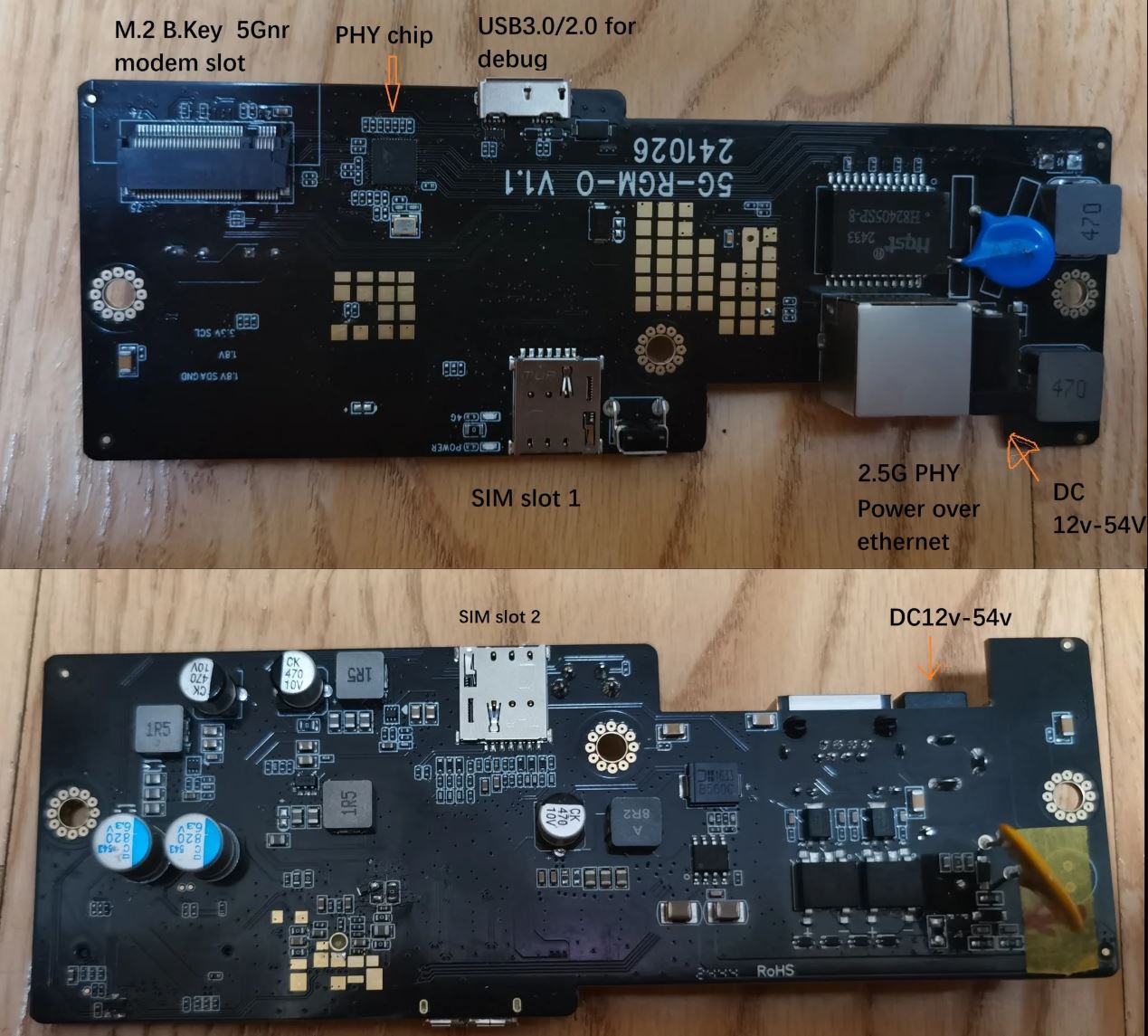

Wodaplug Dual-Q 5G-RGM-O for Quectel RGMII to RJ45 Outdoor unit include 4×4 directional antenna V2 For DIY

This unit design for Qualcomm RGMII to PHY , test with quectel RM500Q Rm502Q RM510Q Rm520N RM551e RM521F

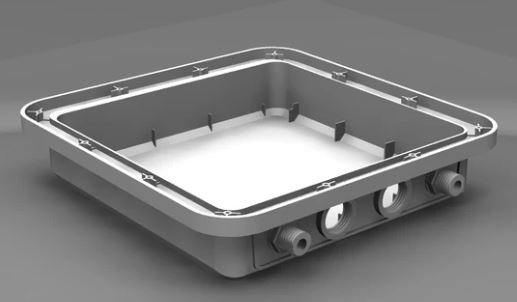

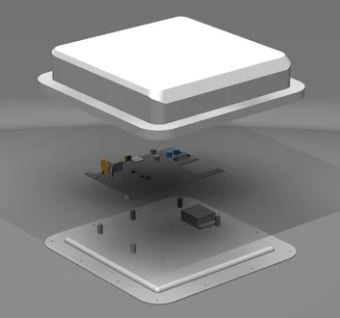

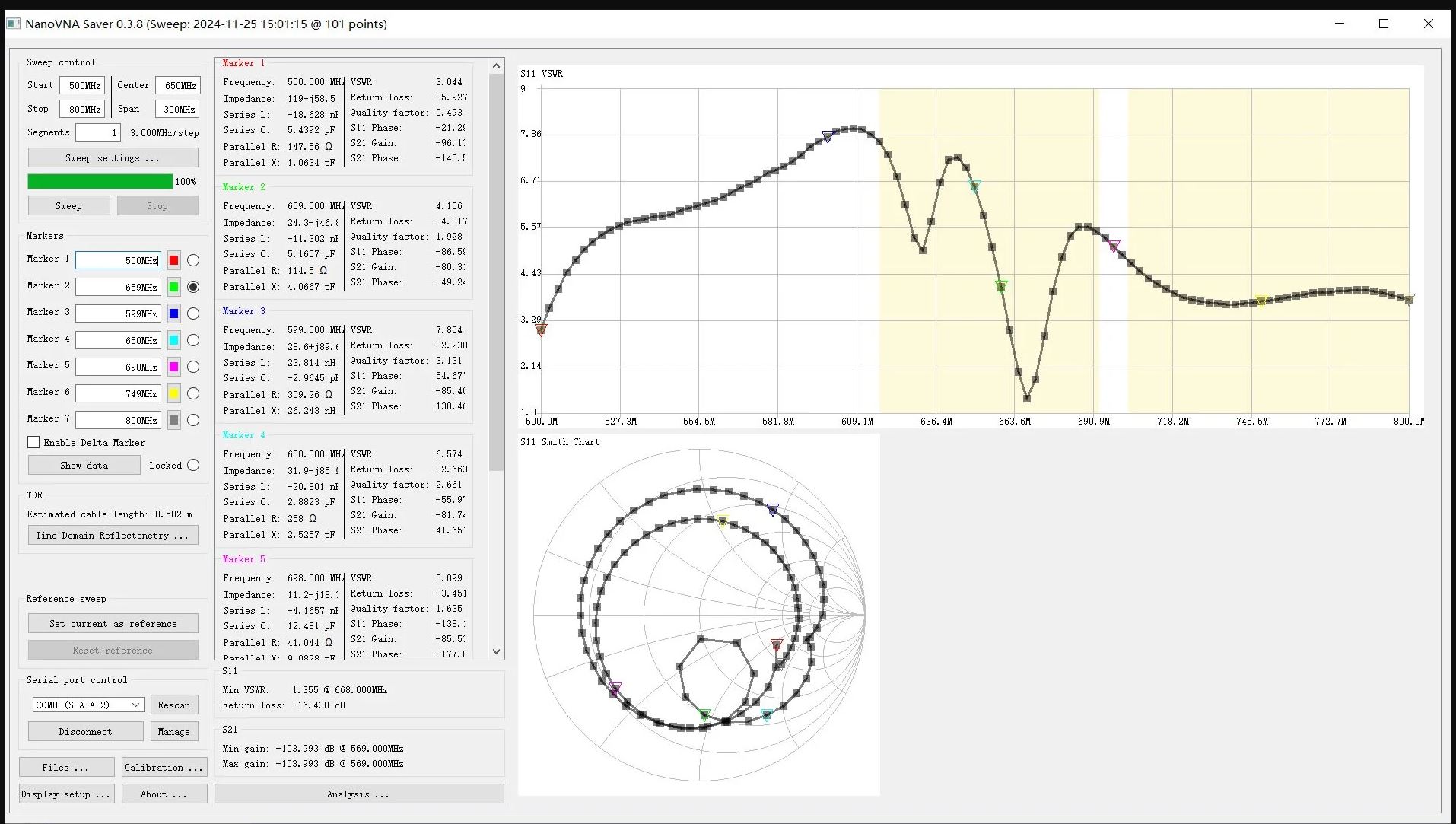

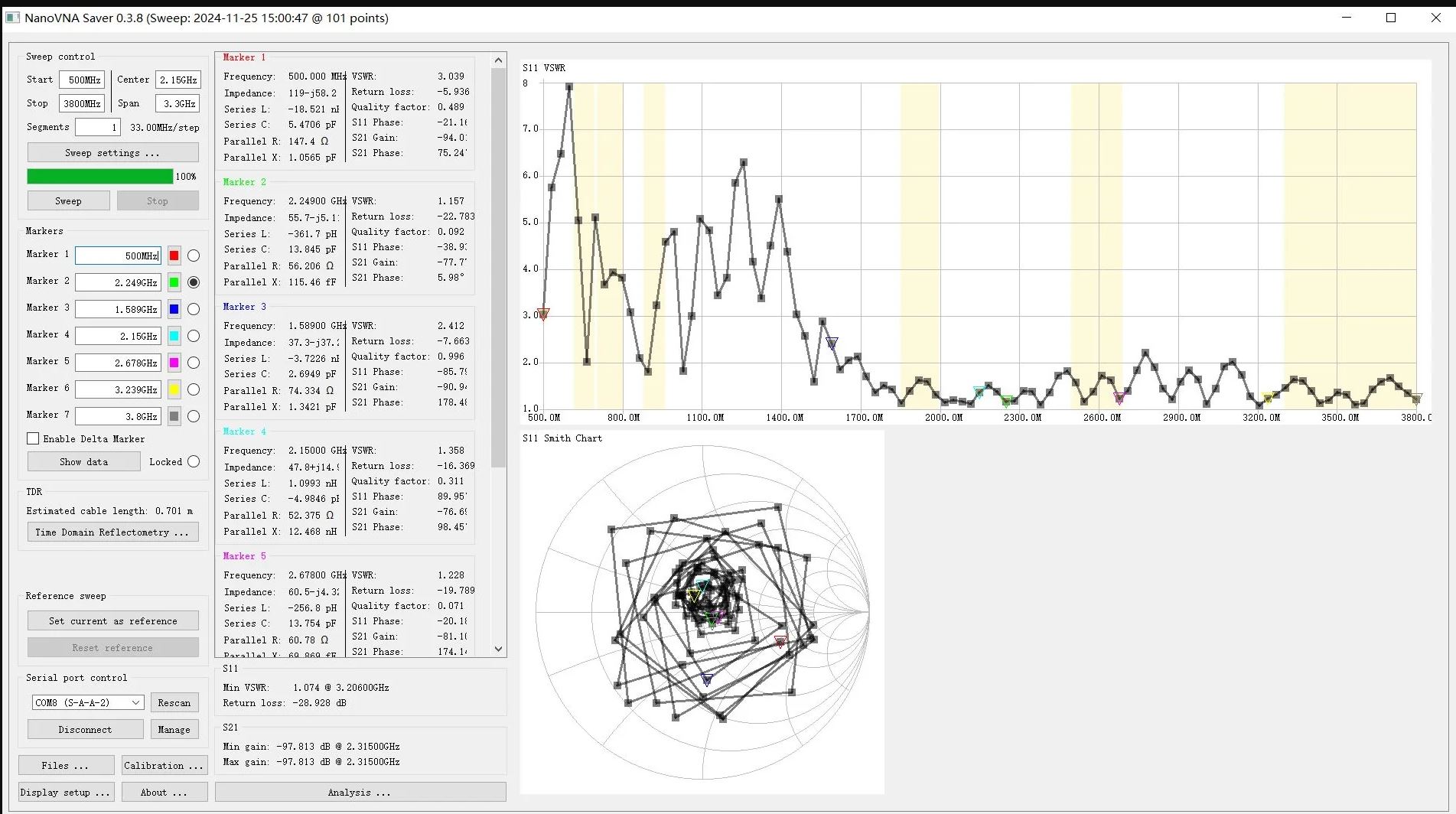

We find a good outdoor enclousre (HW B222s-42a), make  a new 4×4 MIMO antenna, support from 600MHz-960MH &1710MHz-3800Mhz, frequency support 5Gnr N71 N1 N25 N41 N78  and LTE band1,2,3,4,5,8,25,26,38,40,41,66,71 , antenna VSWR test in below in picture section.

We recommend you use webui and RGMII to PHY project https://github.com/iamromulan/quectel-rgmii-configuration-notes

bracket and bracket install:https://youtu.be/V3oawqFvF3U

Packing list:

router board*1;

water proof body case*1  (used have some scrtaches on the surface)

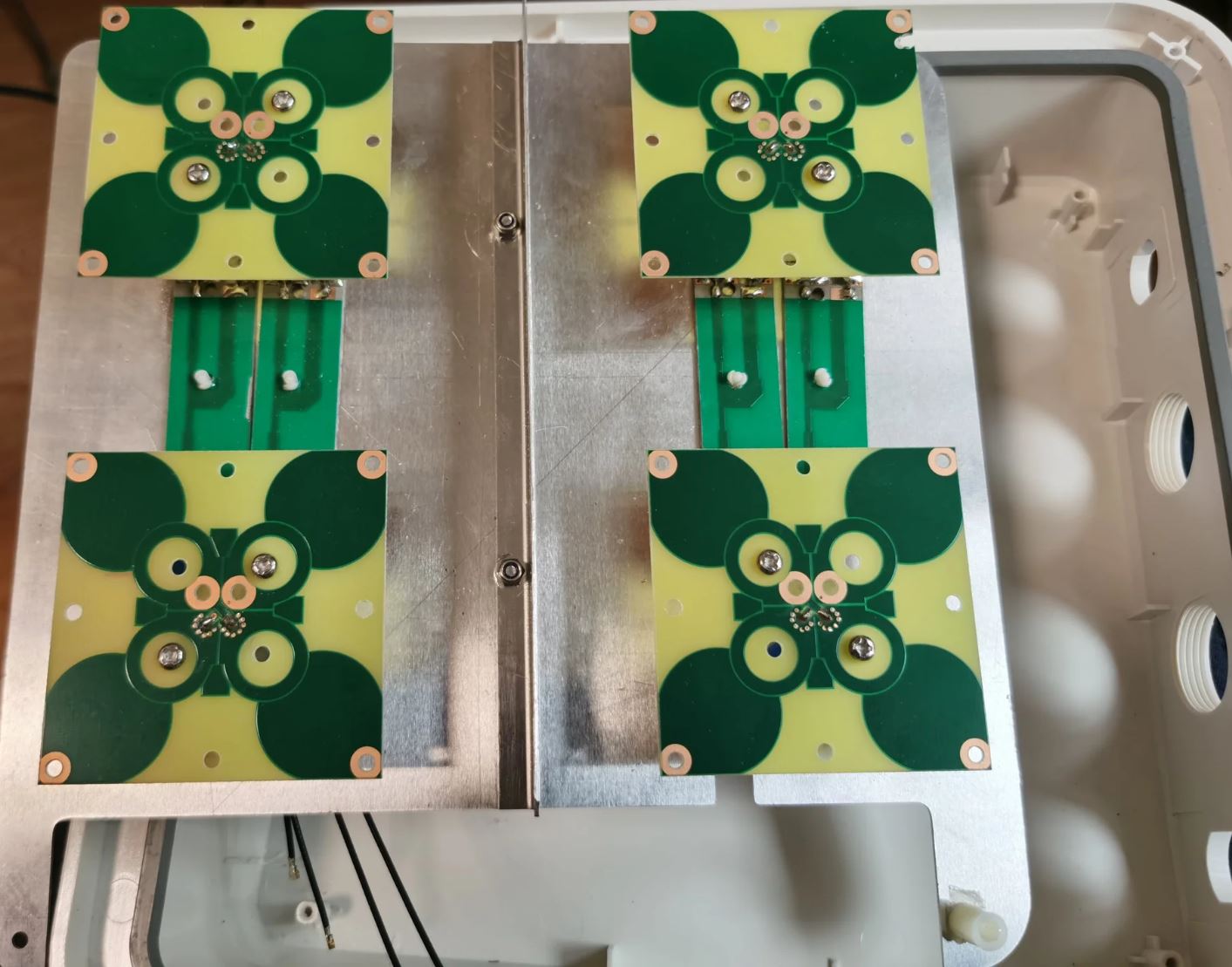

4×4 internal MIMO antenna

L bracket & accessories

2.5G 54V Power Over Ethernet adapter
