Description

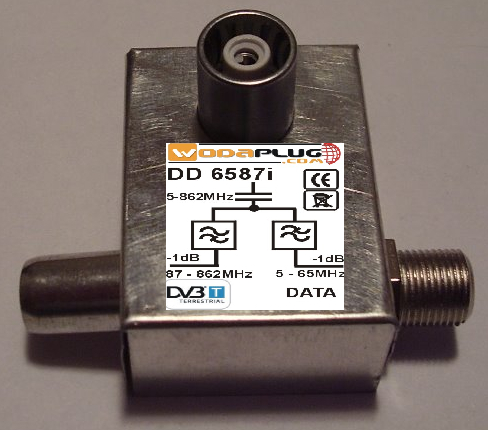

INDOOR DIPLEX FILTER DD 6587
to split DATA and TV signal on the beginning of coax network and to divide TV and DATA signal before end TV (very low loss -1dB and very high signal separation)
or to realise BY PASS of an existing aplifier in your coax network.
high quality housing with 1* F + 2*IEC connectors
high isolation
low price

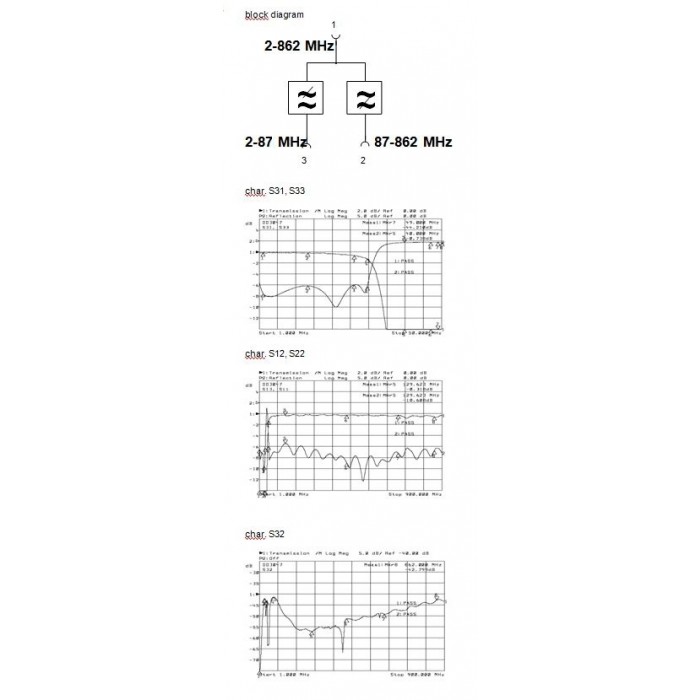

Insertion loss
2-65MHz 0,6dB ±0,2dB
87-170MHz 0,6dB max.
170-750MHz 0,7dB max.
750-870MHz 0,8dB max.
Return loss all ports
2-65MHz 20dB min.
87-870MHz 20dB -1,5dB/okt.
RFI shielding
4-1000MHz 100dB
Port 2-3 isolation
2-10MHz 55dB min.
10-100MHz 43dB min.
100-700MHz 48dB min.
700-870MHz 43dB min.
