SAMPLES AVAILABLE – ORDER NOW ! OPENWIFI AND OPENWRT SUPPORTED.
QCN9074-6E WITH DR6018 PLATFORM: ACHIEVING 1.5GBPS SPEED IN THROUGHPUT TEST!

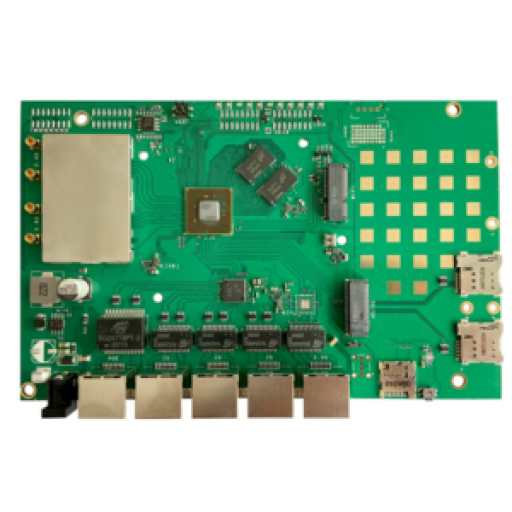

11AX MU-MIMO OFDMA DUAL BAND DUAL CONCURRENT EMBEDDED BOARD
- Qualcomm Atheros IPQ6010 Quad-core ARM 64 bit A53 1.8GHz processor
- 1GB (2x 512MB), DDR L3L 16-bit interface with 32-bit memory bus design
- 256MB NAND Flash
- 32MB NOR Flash
- M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0
- Supports Dynamic Frequency Selection (DFS)
- 2×2 On-board 2.4GHz radio, up to 573Mbps physical data rate
- 2×2 On-board 5GHz radio, up to 1201Mbps physical data rate
- 1x 2.5Gbps Ethernet port
- 5x 1Gbps Ethernet ports
- 1x USB 2.0 Port
- Support: QUECTEL RM500Q modules and support QCN9074 WiFi 6E Card
APPLICATIONS
• 802.11ax MU-MIMO OFDMA Access Point • Mesh router supporting EasyMesh • Smart AP TWT • Can support OpenWIFI firmware
This board is QCA reference design derived from CP01 and is running QCA reference firmware. This board is for Developpers to developp SW.
The DR6018 V4 is reference board cp01-c4. The only remind is to be care of updating firmware – not to make board block, just flash apps not uboot. The board bootstrap is norplusnand. The installed openwrt is done by Qualcomm. The procedure they do is download the older openwrt and change kernel version, and develop their own driver include ethernet, WiFi, etc
SPECIFICATIONS TABLE
On board radio – 2 radios
Wireless On-board 2×2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain
On-board 2×2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain
4x U.FL Connectors
2.4GHz Data Rate 2×2 MU-MIMO OFDMA Technology, up to 573Mbps
5GHz Data Rate 2×2 MU-MIMO OFDMA Technology, up to 1201Mbps
| Symbol | Parameter |
| CPU | Qualcomm-Atheros IPQ6010 |
| CPU Frequency | Quad-core ARM 64 bit A53 @1.8 GHz processor |
| System Memory | 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design |
| Ethernet Port | 1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port |
| NGFF Slot | M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0 |
| SD Card Slot | 1x SD Card Slot |
| USB /header | 1x USB 2.0 Port |
| POE | 24V~48V passive POE/Active POE(Suport 802.3bt) |
| DC Jack | 24V power supply |
| LED header | FFC/FPC Connector |
| Serial Port | 1x Serial Port 4 Pin Connector |
| Wireless | On-board 2×2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain
On-board 2×2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors |
| Bluetooth | CSR8811 BLE 4.2 |
| Nor Flash | 32MB |
| Nand Flash | 256MB |
| DDR | 256MB~512MB |
| Dimension | 185mm x 116mm |
Connectors / Ports:
LED header FFC/FPC Connector
USB /header 1x USB 2.0 Port, 1x USB 3.0 Type-C Port
Serial Port 1x Serial Port, 12 Pin Connector JTAG Debug Interface 1x JTAG 20 Pin Connector
| Radio TX Specifications(5180MHz-5825MHz) |
| Operating Mode | Data Rate | Power | Tolerance | |
| 1 Chain | 2 Chains | |||
| 5Ghz 802.11ax HE20 | MCS0 | 20dBm | 23dbm | ±2dB |
| MCS1 | 20dBm | 23dBm | ±2dB | |
| MCS2 | 20dBm | 23dBm | ±2dB | |
| MCS3 | 20dBm | 23dBm | ±2dB | |
| MCS4 | 19dBm | 22dBm | ±2dB | |
| MCS5 | 18dBm | 21dBm | ±2dB | |
| MCS6 | 17dBm | 20dBm | ±2dB | |
| MCS7 | 16dBm | 19dBm | ±2dB | |
| MCS8 | 15dBm | 18dBm | ±2dB | |
| MCS9 | 14dBm | 17dBm | ±2dB | |
| MCS10 | 13dBm | 16dBm | ±2dB | |
| MCS11 | 13dBm | 16dbm | ±2dB | |
| 5Ghz 802.11ax HE400 | MCS0 | 20dBm | 23dbm | ±2dB |
| MCS1 | 20dBm | 23dBm | ±2dB | |
| MCS2 | 20dBm | 23dBm | ±2dB | |
| MCS3 | 20dBm | 23dBm | ±2dB | |
| MCS4 | 19dBm | 22dBm | ±2dB | |
| MCS5 | 18dBm | 21dBm | ±2dB | |
| MCS6 | 17dBm | 20dBm | ±2dB | |
| MCS7 | 16dBm | 19dBm | ±2dB | |
| MCS8 | 15dBm | 18dBm | ±2dB | |
| MCS9 | 14dBm | 17dBm | ±2dB | |
| MCS10 | 13dBm | 16dBm | ±2dB | |
| MCS11 | 13dBm | 16dbm | ±2dB | |
| 5Ghz 802.11ax HE80 | MCS0 | 20dBm | 23dbm | ±2dB |
| MCS1 | 20dBm | 23dBm | ±2dB | |
| MCS2 | 20dBm | 23dBm | ±2dB | |
| MCS3 | 20dBm | 23dBm | ±2dB | |
| MCS4 | 19dBm | 22dBm | ±2dB | |
| MCS5 | 18dBm | 21dBm | ±2dB | |
| MCS6 | 17dBm | 20dBm | ±2dB | |
| MCS7 | 16dBm | 19dBm | ±2dB | |
| MCS8 | 15dBm | 18dBm | ±2dB | |
| MCS9 | 14dBm | 17dBm | ±2dB | |
| MCS10 | 13dBm | 16dBm | ±2dB | |
| MCS11 | 13dBm | 16dbm | ±2dB | |
| Radio TX Specifications(2412MHz-2482MHz) |
| Operating Mode | Data Rate | Power | Tolerance | |
| 1 Chain | 2 Chains | |||
| 2.4Ghz 802.11ax HE20 | MCS0 | 23dbm | 26dbm | ±2dB |
| MCS1 | 23dBm | 26dBm | ±2dB | |
| MCS2 | 23dBm | 26dBm | ±2dB | |
| MCS3 | 23dBm | 26dBm | ±2dB | |
| MCS4 | 23dBm | 26dBm | ±2dB | |
| MCS5 | 23dBm | 26dBm | ±2dB | |
| MCS6 | 23dBm | 26dBm | ±2dB | |
| MCS7 | 22dBm | 25dBm | ±2dB | |
| MCS8 | 21dBm | 24dBm | ±2dB | |
| MCS9 | 21dBm | 24dBm | ±2dB | |
| MCS10 | 18dBm | 21dBm | ±2dB | |
| MCS11 | 17dbm | 20dbm | ±2dB | |
| 2.4Ghz 802.11ax HE40 | MCS0 | 23dbm | 26dbm | ±2dB |
| MCS1 | 23dBm | 26dBm | ±2dB | |
| MCS2 | 23dBm | 26dBm | ±2dB | |
| MCS3 | 23dBm | 26dBm | ±2dB | |
| MCS4 | 23dBm | 26dBm | ±2dB | |
| MCS5 | 23dBm | 26dBm | ±2dB | |
| MCS6 | 23dBm | 26dBm | ±2dB | |
| MCS7 | 22dBm | 25dBm | ±2dB | |
| MCS8 | 21dBm | 24dBm | ±2dB | |
| MCS9 | 21dBm | 24dBm | ±2dB | |
| MCS10 | 21dBm | 24dBm | ±2dB | |
| MCS11 | 19dbm | 22dbm | ±2dB | |
| GPIO Pin Mapping |
| GPIO Pin Mapping | |||
| Pin | Signal | Pin | Signal |
| GPIO_0 | AUDIO_MUTE_BUT | GPIO_1 | QPIC_BUSY_N |
| GPIO_2 | MIC_VOL_M | GPIO_3 | QPIC_WE_N |
| GPIO_4 | QPIC_RE_N | GPIO_5 | QPIC_DAT4 |
| GPIO_6 | QPIC_DAT5 | GPIO_7 | QPIC_DAT6 |
| GPIO_8 | QPIC_DAT7 | GPIO_9 | WPS |
| GPIO_10 | QPIC_CLE_N | GPIO_11 | QPIC_NAND_CE_N |
| GPIO_12 | QPIC_DAT1 | GPIO_13 | QPIC_DAT2 |
| GPIO_14 | QPIC_DAT3 | GPIO_15 | QPIC_DAT0 |
| GPIO_16 | MIC_KPD_PWR_N | GPIO_17 | QPIC_ALE |
| GPIO_18 | KYPD_HOME_N | GPIO_19 | GND |
| GPIO_20 | Boot_Config(PULL_DOWN) | GPIO_21 | MUTE_ON |
| GPIO_22 | ADC_RST | GPIO_23 | WSA_SWR_CLK |
| GPIO_24 | WSA_SWR_DATA | GPIO_25 | PWM_LED_RST |
| GPIO_26 | Boot_Config(PULL_DOWN) | GPIO_27 | WSA_EN_R |
| GPIO_28 | WSA_EN_L | GPIO_29 | PDM_CLK0 |
| GPIO_30 | PDM_DATA0 | GPIO_31 | PDM_CLK1 |
| GPIO_32 | PDM_DATA1 | GPIO_33 | EXT_MCLK2_ADC |
| GPIO_34 | MIC_VOL_P | GPIO_35 | LED_5G |
| GPIO_36 | PCIE0_WAKE | GPIO_37 | LED_2GS |
| GPIO_38 | SPI0_CLK | GPIO_39 | SPI0_CS_NI |
| GPIO_40 | SPI0_MISO | GPIO_41 | SPI0_MOSI |
| GPIO_42 | BLSP2_SCL | GPIO_43 | BLSP2_SDA |
| GPIO_44 | BLSP2_UART_RX | GPIO_45 | BLSP2_UART_TX |
| GPIO_46 | BLSP5_SCL | GPIO_47 | BLSP5_SDA |
| GPIO_48 | NC | GPIO_49 | Boot_Config(PULL_DOWN) |
| GPIO_50 | LED_USB0 | GPIO_51 | BT_PRIORITY_PTA11 |
| GPIO_52 | WLA_ACTI_PTA12 | GPIO_53 | BT_ACT_PTA10 |
| GPIO_54 | Boot_Config(PULL_DOWN) | GPIO_55 | NC |
| GPIO_56 | NC | GPIO_57 | NC |
| GPIO_58 | NC | GPIO_59 | PCIE0_CLK_REQ |
| GPIO_60 | PCIE0_RSTn | GPIO_61 | NC |
| GPIO_62 | SD_DET | GPIO_63 | SD_WP |
| GPIO_64 | MDC | GPIO_65 | MDIO |
| GPIO_66 | SD_LDO_EN | GPIO_67 | NC |
| GPIO_68 | NC | GPIO_69 | SPI_CLK_UART_RTSn |
| GPIO_70 | SPI_CS_UART_CTSn | GPIO_71 | SPI_MISO_UART_RX |
| GPIO_72 | SPI_MOSI_UART_TX | GPIO_73 | USB_OTG |
| GPIO_74 | NC | GPIO_75 | Malibu_RESET |
| GPIO_76 | NAPA_INT0 | GPIO_77 | NAPA_RESET |
| GPIO_78 | QTZ_INT | GPIO_79 | QTZ_RESET |
| Boot Config Switch |
| Boot_Config Switch1(S7) | |||
| Boot_Config | Boot up Interface Select | ||
| S7A | S7B | S7C | |
| 0 | 0 | 0 | SPI NOR. (Default) |
| 0 | 0 | 1 | eMMC |
| 0 | 1 | 0 | QPIC, Parallel NAND |
| 0 | 1 | 1 | USB2.0 |
| 1 | 0 | 0 | SPI-NOR-GPT |
| S7D | Boot up Interface Select | ||
|
0
|
Boot from code ram.(Default) | ||
|
1
|
Boot from ROM | ||
| Boot_Config Switch2(S9) | |||
| Boot_Config | Boot up Interface Select | ||
|
0
|
No auth.(Default) | ||
|
1
|
Auth is required | ||
| Interface MAP |
