Description

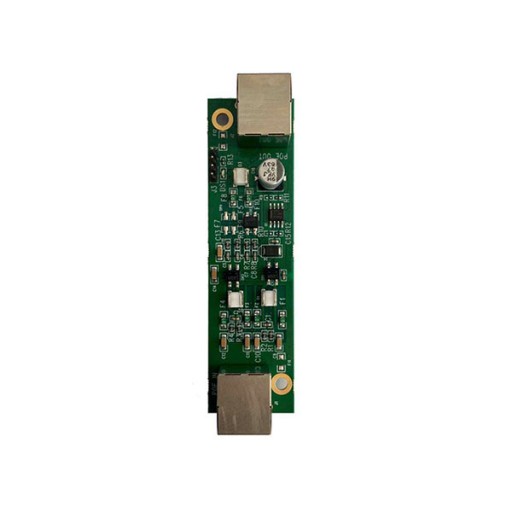

WALLYS PD-25 802.3 AF / AT ACTIVE POE TO PASSIVE POE 24V ADAPTER (FOR LV VERSION BOARDS TO WORK WITH 802.3AF/AT POE)
Product Description : PD-25 is a 802.3at module，that also support 802.3af standard.And it can work in complex environment. It delivers 24V for devices that support Passive POE only.
Features :
Support 802.3AT/AT
The output voltage is 24V
The efficiency is 85%
Support surge protection
Support RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
| Specifications |
| Parameter | Rating | Unit |
| Input voltage | 42~56 | V |
| Output Voltage | 24 | V |
| The maxim output power | 25 | V |
| 10/100/1000Mbps Gigabit Ethernet | 2xRJ45（one is for input，one is for output） | |
| Surge protection | Yes | |
| Operating Temperature | -40 to +70 | ºC |
| Operating Humidity Range | 5 to +95 (non-condensing) | % |
| Storage Humidity Range | 0 to +90 (non-condensing) | % |
| ROHS Compliance | YES |
| Dimensions |
| Parameter | Rating | Unit |
| Length | 100.7 | Mm |
| Width | 27.4 | Mm
|
