Description
Features
Support 1 pcs M.2 card

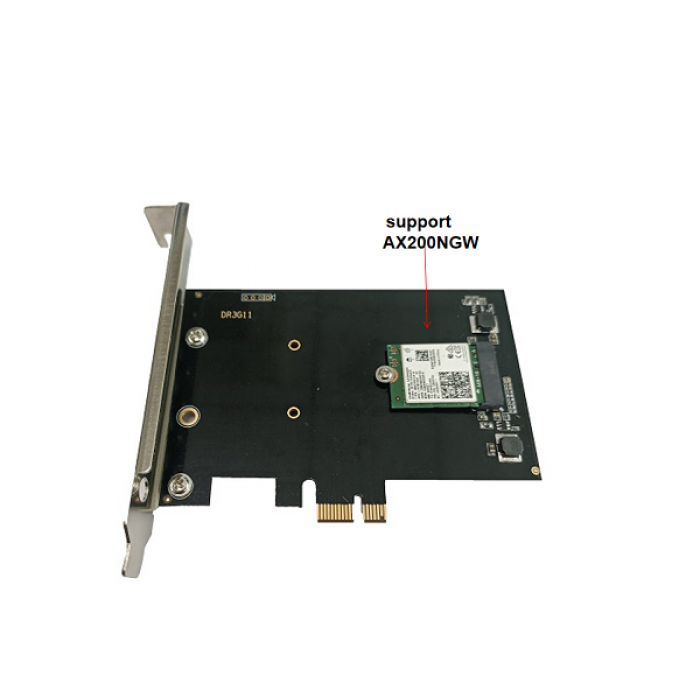

Support Intel AX200NGW

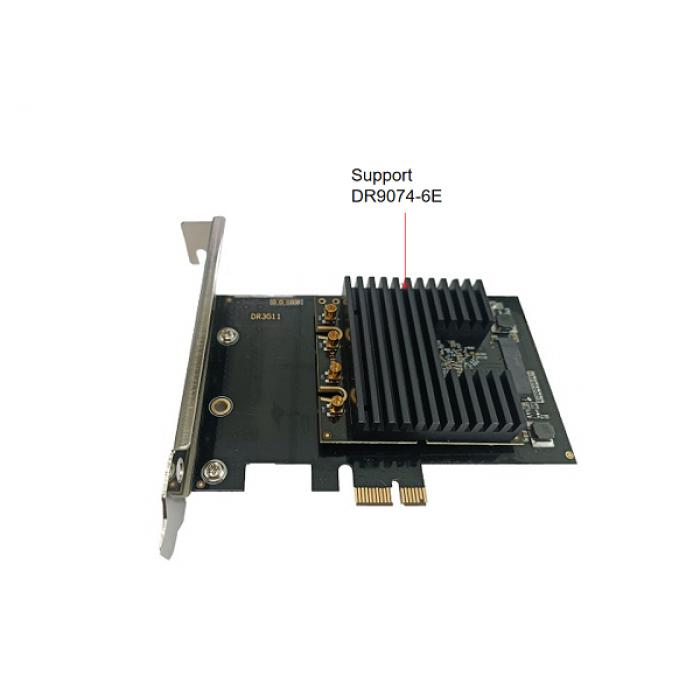

Support DR9074 – 5G / 6E WIFI 6 modules
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Product Description

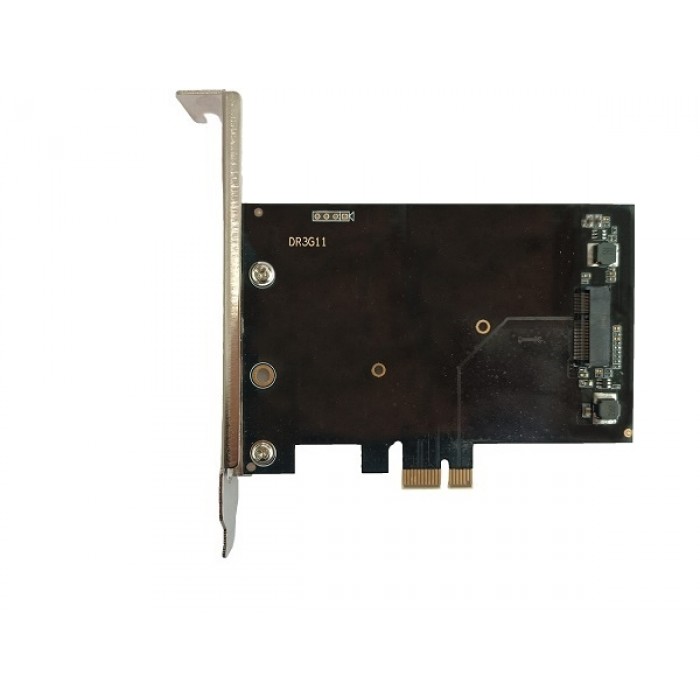

DR3G11 is an adapter card with one M.2 slot. It can be used in a PC with a PCIe slot. Use this new adapter to expand your connectivity and upgrade your device to use the latest m.2 interface cards. Each comes with both low and regular profile brackets. Brackets include holes for mounting SMA connectors, or for using as cable exit holes.
| Specifications |
| Parameter | Rating | Unit |
| Input voltage | 12 | V |
| Output Voltage | 3.3 | V |
| Operating Temperature | -40 to +70 | ºC |
| Operating Humidity Range | 5 to +95 (non-condensing) | % |
| Storage Humidity Range | 0 to +90 (non-condensing) | % |
| ROHS Compliance | YES |
| Outline |
| Parameter | Rating | Unit |
| Length | 110 | Mm |
| Width | 66 | Mm |
