Description
1. Feature
- WIFI 7 Dipole Antenna
- 2.4~2.5 & 5.15~7.15 GHz of frequency
- Plastic rod of White
- ROHS compliance
2. Application
- Wi-Fi7 Wireless Communication
- WLAN device, WLAN Router, e.g., AP, PIC Wireless Card
3. Description
The antenna was specially designed by 524WiFi for WIFI7. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.
|
Product Name |
WiFi7 Dipole Antenna |
|
Part No. |
DR2G6G5D001 |
|
Frequency |
2.4~2.5 &5.15~7.15GHz |
|

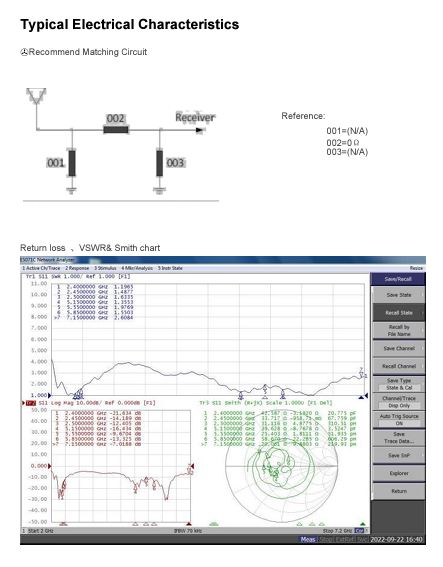

V.S.W.R |
2.4~2.5GHz≤2.0
5.15~7.15GHz≤3.0 |
|

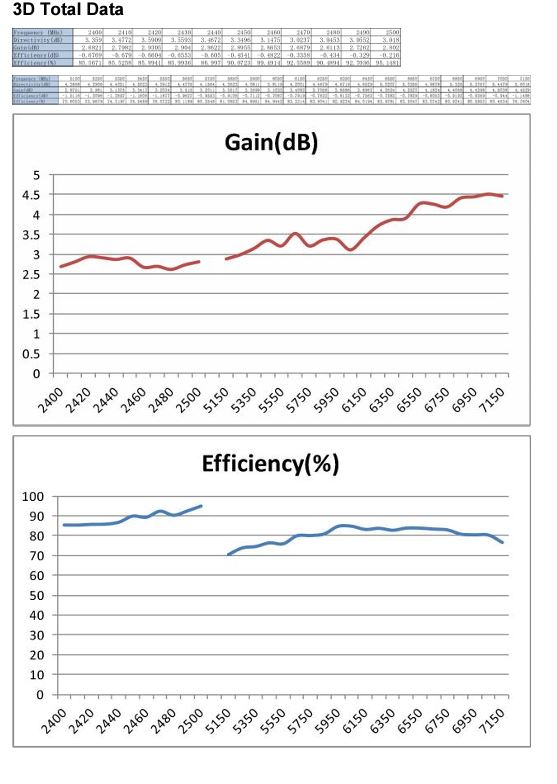

Gain (dBi) |
5.0dBi(MAX) |
|
Polarization |
Vertical |
|
Storage Temp |
-10℃~+70℃ |
|
Operating Temperature |
-10℃~+60℃ |
|
Impedance with Matching |
50 Ω |
|

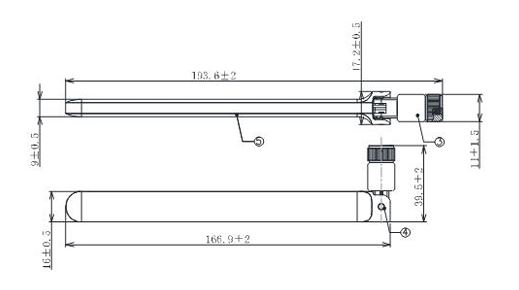

Dimension |
L193.6 (mm) |
