Quectel RM530N-GL 5G NR Sub6 and mmWAVE M.2 NGFF Modem, 3GPP Rel 16 NSA and SA operation, Global module, SDX62, 4x4 MIMO
Quectel RM530N-GL 5G NR Sub6 and mmWAVE M.2 NGFF Modem, 3GPP Rel 16 NSA and SA operation, Global module, SDX62, 4x4 MIMO - Image 2
Quectel RM530N-GL 5G NR Sub6 and mmWAVE M.2 NGFF Modem, 3GPP Rel 16 NSA and SA operation, Global module, SDX62, 4x4 MIMO - Image 3

Quectel RM530N-GL 5G NR Sub6 and mmWAVE M.2 NGFF Modem, 3GPP Rel 16 NSA and SA operation, Global module, SDX62, 4×4 MIMO

8 349 Kč

QUECTEL 5G NR RM530N-GL GLOMAL M.2 MODULE, 4X4 MIMO DL, CAT16, IOT/EMBB-OPTIMIZED 5G SUB-6 GHZ AND MMWAVE samples available for orders now with 1-2weeks lead time Quectel 5G Sub6 and mmWave Module Form factor: M.2 package Target market: Global 5G SA Sub-6 speeds: DL 2.4Gbps, UL 900Mbps 5G NSA Sub-6 speeds: DL 3.2Gbps, UL 600Mbps 5G NSA mmWave: Max. 4.0Gbps (DL)/ Max. 1.4Gbps (UL) Control via AT Commands Specially designed for IoT/eMBB application 8.7g , 30mm × 52mm × 2.3mm, Extended temperature range of -40°C to +85°C Quectel RM530N-GL is a 5G module that is specially optimized for IoT/eMBB applications. Based…

1 in stock (can be backordered)

Compare
SKU: RM530N-GL
Category: , , ,
Tags: , , , , , , , , , , , , , , , ,
Brands:

Description

* Product type: 5G Sub-6GHz and mmWave Module

* Chipset: Qualcomm Snapdragon

* 5G: Sub-6GHz and mmWave, comply with the 3GPP Release 16 standards

* Form factor: M.2

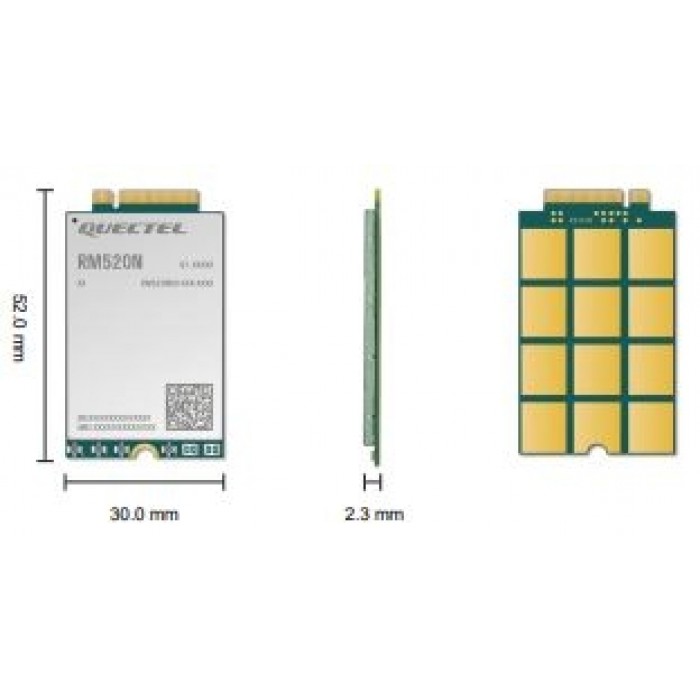

* Dimensions: 52.0× 30.0 × 2.3mm

* Frequency Bands:
– 5G NR Bands: n1/n2/n3/n5/n7/n8/n12/n13/n14/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79/n257/258/n260/261
– LTE-FDD Bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
– LTE-TDD Bands: B34/B38/B39/B40/B41/B42/B43/B48
– LAA: B46
– WCDMA: B1/B2/B4/B5/B8/B19

* Target Market: Global

* Weight：8,7g

* Temperature range:
– -30°C ~ +70°C (Operation Temperature)
– -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
– 5G SA Sub-6: Max. 2.4Gbps (DL)/ Max. 900Mbps (UL)
– 5G NSA Sub-6: Max. 3.2Gbps (DL)/ Max. 600Mbps (UL)
– 5G NSA mmWave: Max. 4.0Gbps (DL)/ Max. 1.4Gbps (UL)

* SMS

* Protocols: TCP/UDP/FTP/HTTP/HTTPS /PING/SMS

* Interfaces:
– (U)SIM × 2
– USB 2.0/3.0/3.1
– PCle: PCIe 4.0
– Antenna: Sub-6/GNSS x 4, mmWave x 2

* Enhanced Features
– MIMO: Sub-6 (4 x 4 DL, UL 2 x 2); mmWave (DL 2 x 2, UL 2 x2)
– Audio
– VoLTE：Optional
– DTMF: Dual-tone Multi-frequency
– DFOTA: Delta Firmware over the Air
– GNSS: GPS/GLONASS/Beidou/Galileo
– (U)SIM insert inspect

* Electrical Features
– Supply Voltage Range: 3.135V~4.4V, 3.7V Typ.
– Power Consumption
>TBD @Power off
>TBD @Sleep, Typ.
>TBD @Idle

* Software Features
– USB Serial Driver
> Windows 7/8/8.1/10,
> Linux 2.6-5.8,
> Android Android 4.x/5.x/6.x/7.x/8.x/9.x/10
– GNSS Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10
– RIL Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10
– NDIS Driver: Windows 7/8/8.1/10
– MBIM Driver: Windows 10, Linux 3.18-5.8
– Gobinet Driver: Linux 2.6~5.8
– QMI_WWAN Driver: Linux 3.4~5.8
– PCIe Driver: Windows 10, Linux 3.10~5.8, Android 4.x/5.x/6.x/7.x/8.x/9.x/10

* Certifications/Approvals: GCF*/CE*/PTCRB*/FCC*/IC*/JATE*/TELEC*/RCM*

* Applications: Industrial Router, Home gateway, Set-top box, Indurstrial PDA, Rugged Tablet PCs etc…

Additional information

Weight 0,1 kg
Dimensions 6 × 4 × 0,5 cm
