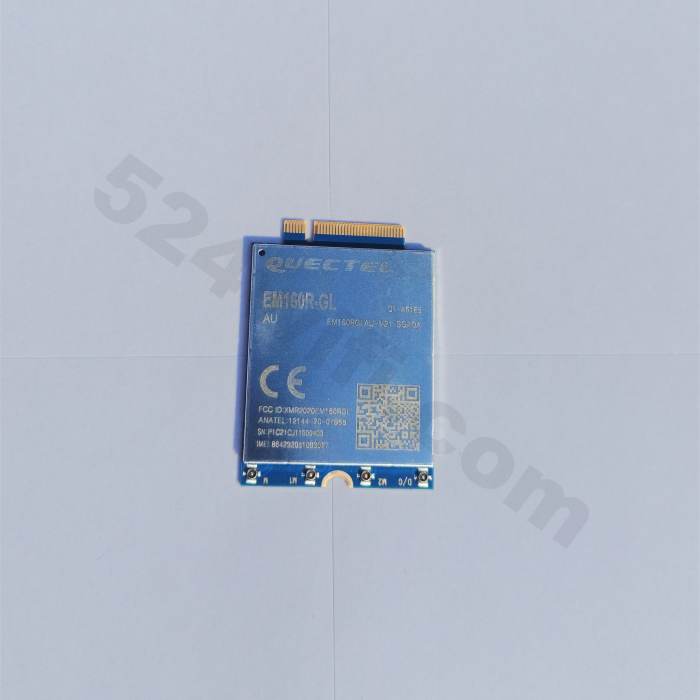

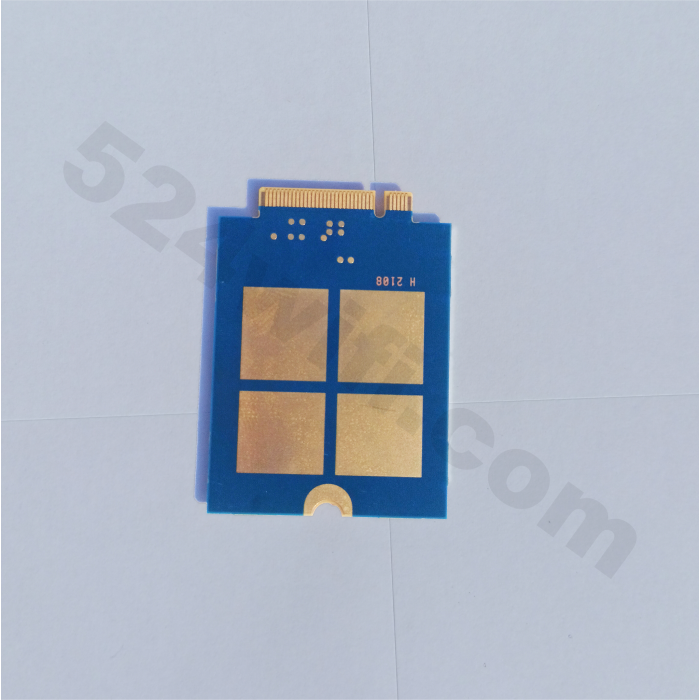

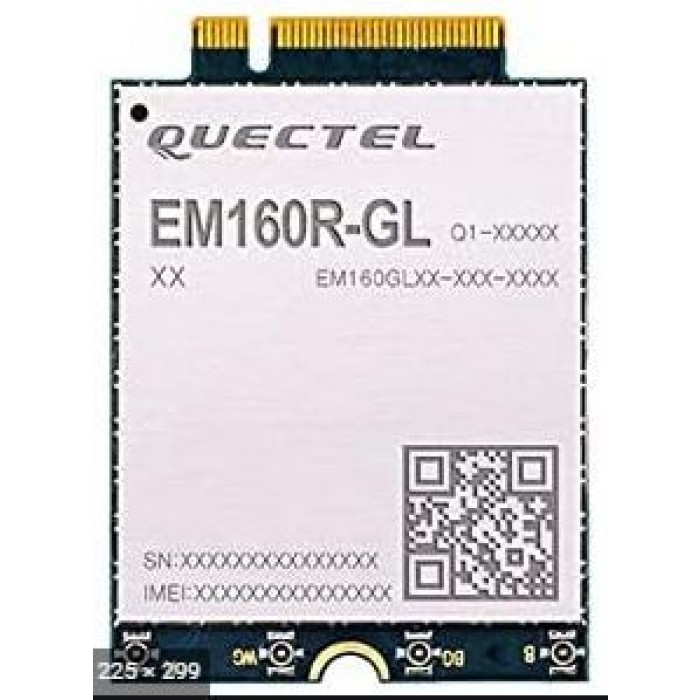

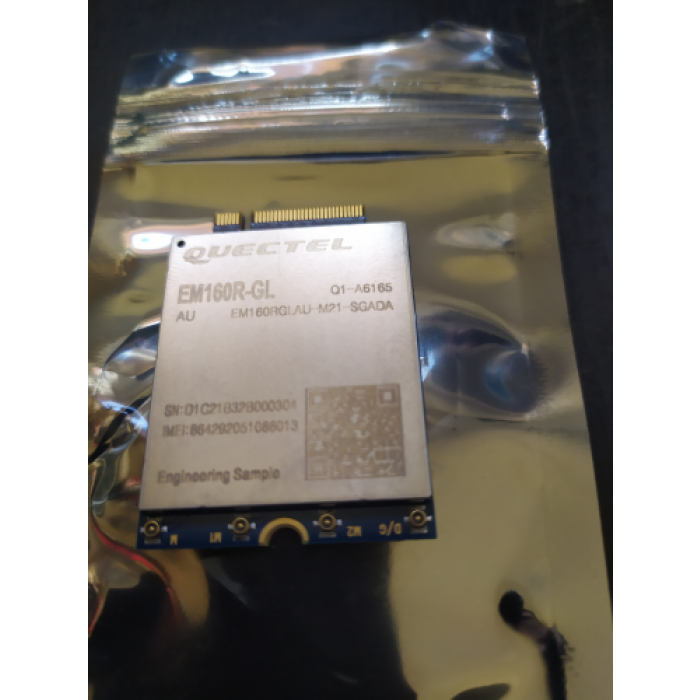

Quectel EM160R-GL EM16-G Quectel LTE-A M.2 IoT/M2M DL 5xCA Cat 16 Module ( global ) , 1GBit / 150MBit 5G+ ready

Description

* LTE-A Cat 16 module with M.2 form factor, optimized for eMBB and IoT applications
* Form factore: M.2
* Platform: Qualcomm’s SDX24 chipset
* LTE standard: 3GPP Rel. 13
* Support DL 5x carrier aggregation and 256QAM
* Worldwide LTE-A and UMTS/HSPA+ coverage
* Support PCIe standard interface for PC/Laptop application
* Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
* MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
* GNSS Integrated: Yes
* GNSS Standard: GPS, GLONASS, BeiDou, Galileo
* LTE/4G Band: 524wifi.com
– LTE FDD (B1/B2/B3/B4/B5/B7/B8/B12/B13/ B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66)
– LTE TDDB38/39/B40/B41/B42/B43/B46(LAA)/B48(CBRS)
* IoT: Yes
* MIMO: Yes, 4 x 4 MIMO
* Download Data rate: 1 Gbps
* UplinkData rate: 150 Mbps
* Size: 2.0×30.0×2.3 mm
