Description

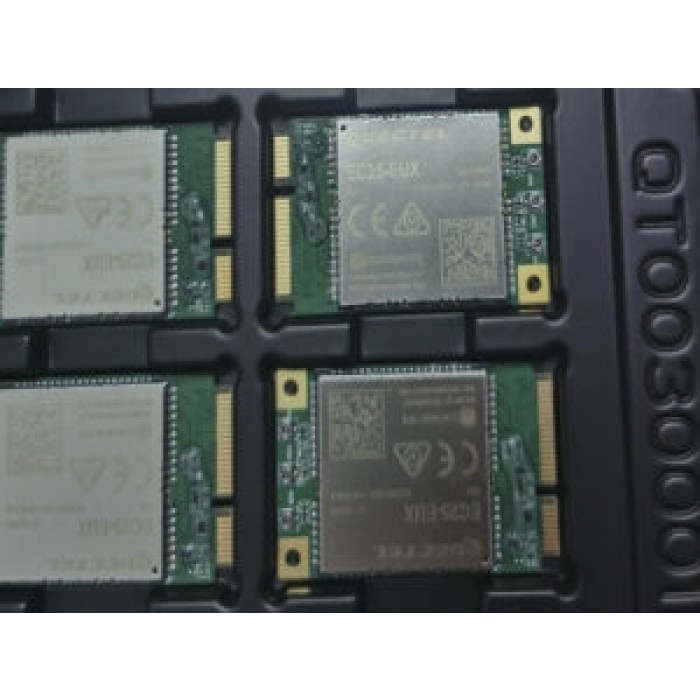

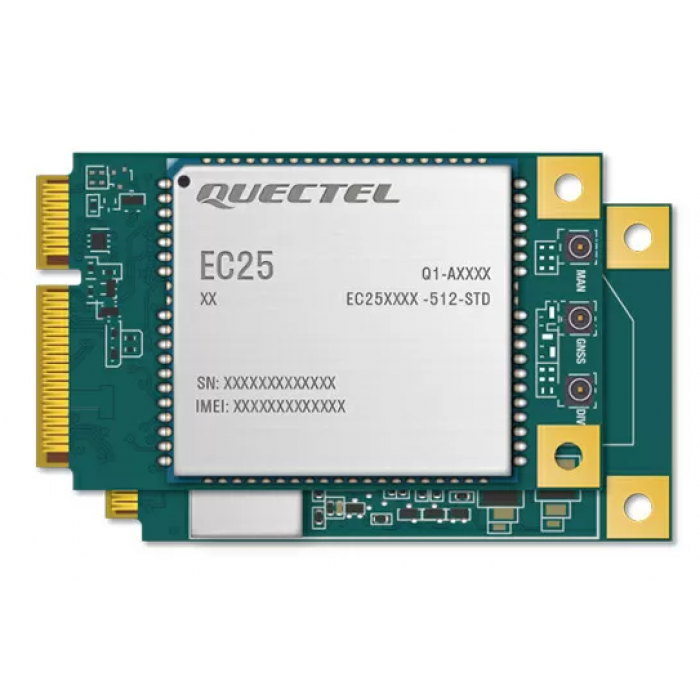

LTE module – EC 25-E FA miniPCIE
| Quectel EC25 is a series of LTE category 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers 150Mbit/s downlink and 50Mbit/s uplink data rates. Designed in the compact and unified form factor, EC25 is compatible with Quectel UMTS/ HSPA+ UC20 module and multi-mode LTE EC20/EC21 module, which allows for flexible migration among them in design and manufacturing.
EC25 series contains 12 variants: EC25-E, EC25-EU, EC25-EUX, EC25-J, EC25-A, EC25-V, EC25-AF, EC25-AFX, EC25-AFXD (Data-only), EC25-MX, EC25-AU and EC25-AUX. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage. EC25 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7, Windows 8/8.1, Windows 10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.
|
| Model | EC25-EUX Mini PCIe LTE Cat 4 |
| Region/Operator | EMEA/Thailand |
| Dimensions (mm) | 30.0 × 51.0 × 4.9 |
| Temperature Range | |
| Operation Temperature | -35°C ~ +75°C |
| Extended Temperature | -40°C ~ +80°C |
| Frequency Bands | |
| LTE-FDD | B1/B3/B7/B8/B20/B28A |
| LTE-TDD | B38/B40/B41 |
| WCDMA | B1/B8 |
| GSM/EDGE | B3/B8 |
| GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
| Certifications | |
| Regulatory | Global: GCF |
| Europe: CE | |
| Taiwan (China): NCC | |
| Australia/New Zealand: RCM | |
| Others | RoHS/WHQL |
| Data Transmission | |
| LTE-FDD Data Rates (Mbps) | 150 (DL)/ 50 (UL) |
| LTE-TDD Data Rates (Mbps) | 130 (DL)/ 30 (UL) |
| DC-HSPA+ Data Rates (Mbps) | 42 (DL)/ 5.76 (UL) |
| WCDMA Data Rates (Kbps) | 384 (DL)/ 384 (UL) |
| EDGE Data Rates (Kbps) | 296(DL)/ 236.8 (UL) |
| GPRS Data Rates (Kbps) | 107(DL)/ 85.6 (UL) |
| Interfaces | |
| (U)SIM | x1 |
| USB 2.0 | x1 |
| Audio Digital (PCM) | x1 |
| I2C | x1 |
| LED_WWAN | x1 |
| W_DISABLE | x1 |
| UART | x1 |
| PERST | x1 |
| Voice | |
| Speech Codec Modes | HR/FR/EFR/AMR/AMR-WB |
| Echo Arithmetic | Echo Cancellation/Noise Suppression |
| VoLTE | Digital Audio and VoLTE (Voice over LTE) |
| Enhanced Features | |
| eCall * | ● |
| DTMF | ● |
| DFOTA | ● |
| QMI/ RmNet | ● |
| Audio Playback*/Audio Recording* | Optional |
| QuecLocator® | ● |
| QuecFile | ● |
| (U)SIM Card Detection | ● |
| Drivers | |
| USB Serial Driver | Windows 7/ 8/ 8.1/ 10, |
| Linux 2.6~5.4, Android 4.x/ 5.x/ 6.x/ 7.x/ 9.x | |
| GNSS Driver | Android 4.x/5.x/6.x/7.x/8.x/9.x |
| RIL Driver | Android 4.x/5.x/6.x/7.x/8.x/9.x |
| NDIS | Windows 7/ 8/ 8.1/ 10 |
| GobiNet Driver | Linux 2.6~5.4 |
| QMI_WWAN Driver | Linux 3.4~5.4 |
| Electrical Features | |
| Supply Voltage Range | 3.0V~3.6V, 3.3V Typ. |
| Power Consumption | 1.69mA @Sleep, Typ. |
| 18.51mA @Idle | |
- Low-power, cost-effective LTE Cat 4 wireless communication module, specially designed for M2M and IoT applications
- Comprehensive coverage of various network standards
- Standard Mini PCIe encapsulated module, providing maximum convenience for customers’ design and use
- MIMO technology meets the data rate and connection reliability requirements of wireless communication systems
- Built-in multi-constellation GNSS receiver to meet the needs of fast and precise positioning under different environmental conditions
