Description
Overview
EC200A is a series of LTE Cat 4 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-9 LTE technology, it delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink. Designed in a compact and unified form factor, EC200A series is compatible with Quectel multi-mode LTE standard EC25 series, EC21 series, EC20-CE, EG25-G, EC200U series, EC200N-LA and UMTS/HSPA+ UC200A-GL module, which allows for flexible migration among them in design and manufacturing.
The EC200A series contains four variants: EC200A-CN, EC200A-EU, EC200A-AU and EC200A-EL, covering the frequency band of different countries and regions. It is backward compatible with existing GSM/ GPRS/ EDGE networks, ensuring that it can work properly even in remote areas devoid of 4G or 3G coverage. Using a laser engraving process, EC200A series features a better appearance, strong metallic texture, better heat dissipation, and durable label information, which makes it more suitable for automation requirements.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/ 8/ 8.1/ 10/ 11, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, MIFI, industrial PDA, rugged tablet PC, video transmission, and digital signage.
Key features
- LTE Cat 4 module optimized for M2M and IoT applications
- Worldwide LTE, UMTS/HSPA+ and GSM/ GPRS/ EDGE coverage
- Supports DFOTA
- Supports VoLTE
- MIMO technology meeting demands for data rate and link reliability in modem wireless communication systems
- Super cost-effective

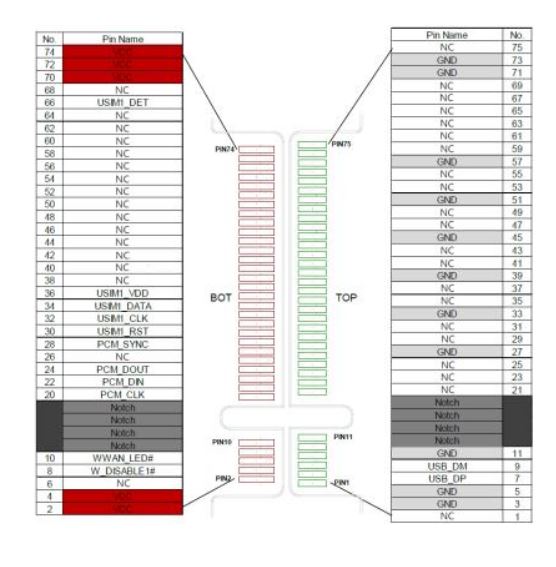

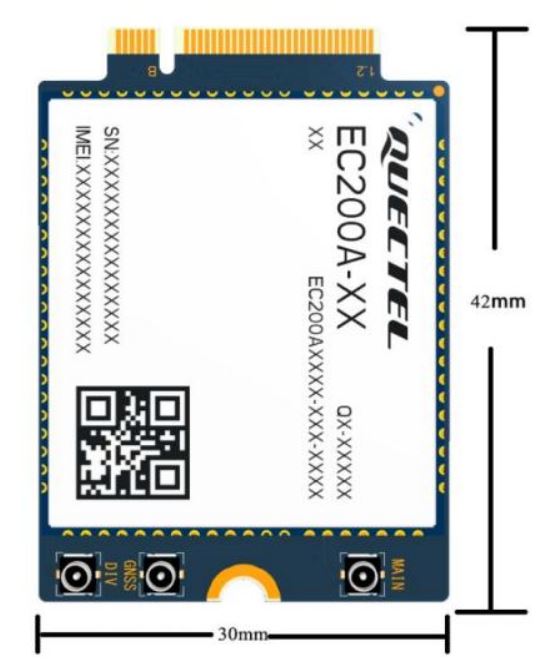

- M.2 Key-B slot , 2x ufl connectors
- identical to MikroTik R11eL-EC200A-EU but in m.2 for factor
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 3 (1800MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41n (2500MHz) |
| TAC | 86314105 |
This m.2 modem is designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.
IPEX 1 – u.fl antenna connectors: First generation IPEX RF base,3mm*3mm, height 1.15, diameter
(diameter)2.0mm(±0.05mm)
