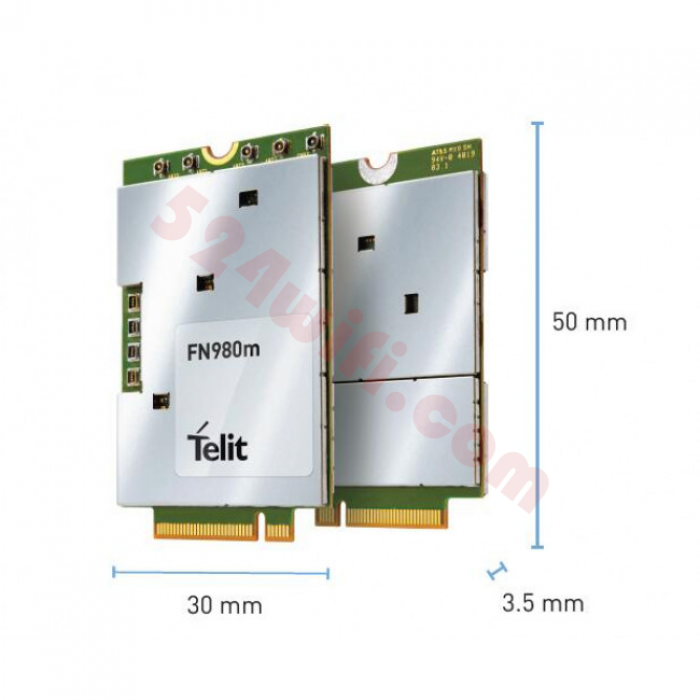

Qualcomm SDX55 Telit FN980 LTE Advanced 5G Data Card

12 076

Telit FN980 5G wireless module Specifications:  (EOL) * Telit 5G Module * Chipset: Qualcomm Snapdragon X55 5G * 5G Sub-6 and mm Wave FDD and TDD, SA & NSA operations * 5G core network Opt. 3a/3x and Opt. 2 * 4G: 7CA, up to 20 layers DL / 3CA UL,256 QAM DL/UL * 3G: HSPA+ Rel. 8 (DL/UL 42/11 Mbps) * Data Rates: – 5G up to 5.5 Gbps DL/2.7 UL Gbps – 4G up to 2.4 Gbps DL/211 Mbps UL – 3G up to 42 DL/11 UL Mbps   * GNSS: gpsOne Gen9 L1 band on dedicated RF connector, L5 shared with…

Out of stock

Description

The Telit FN980 and data cards enable a new
generation of 5G state-of-the-art data cards featuring
sub-6 technologies with LTE, WCDMA and GNSS support. These data cards lay the
foundation for businesses worldwide to future-proof IoT,
enterprise applications and video while leveraging all 5G’s
and Gigabit LTE’s benefits immediately.

The industrial-grade M.2 form factor is suitable for many
high-performance and bandwidth-intensive enterprise
and industrial applications. Use cases include high-power
fixed wireless access, enterprise routers and gateways,
indoor and outdoor CPE, and professional broadcasting
and surveillance.

Designed for global use, the FN980
incorporate support for all scenarios prescribed by the
3GPP deployments of 5G, including non-standalone (NSA)
LTE-5G NR dual connectivity (EN-DC), dynamic spectrum
sharing between LTE and 5G, and full 5G NR standalone
(SA) mode.

Leveraging the full feature set of the groundbreaking
second-generation Qualcomm® Snapdragon™ X55 5G
Modem-RF System, the Telit data cards support the latest
5G deployments.

The FN980 and supports all major sub-6 GHz
frequency bands, giving users maximum deployment
flexibility.

Additional information

Weight 0,1 kg
Dimensions 4 × 3 × 0,5 cm
