Description
524wifi and Wallys tech are Introducing Qualcomm’s 4×4 11be AP mode enabled radio module! Based on Waikiki series QCN 6274 / 9274 . Works with IPQ9574 Adler boards. HW 2.0 support , driver ath12k for Linux available.
Features
■ Qualcomm Atheros QCN9274/QCN6274 for Industrial Grade;
■ Maxim Tx power 20dBm per chain;
■ 4×4 2.4G MU-MIMO, up to 1376Mbps physical data rate;
■ M.2 connector;
■ PCI Express 3 .0 Interface
Applications
■ Security Surveillance
■ Commercial radio coverage
■ Hotel Wireless application
■ Forest fire protection engineering
■ Country coverage
■ Some special scene application
| Product Description |

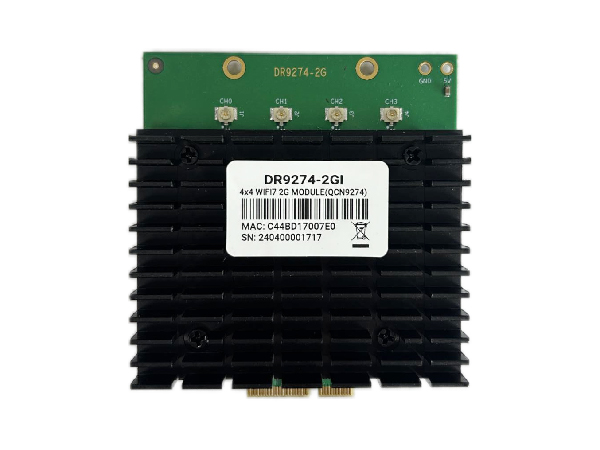

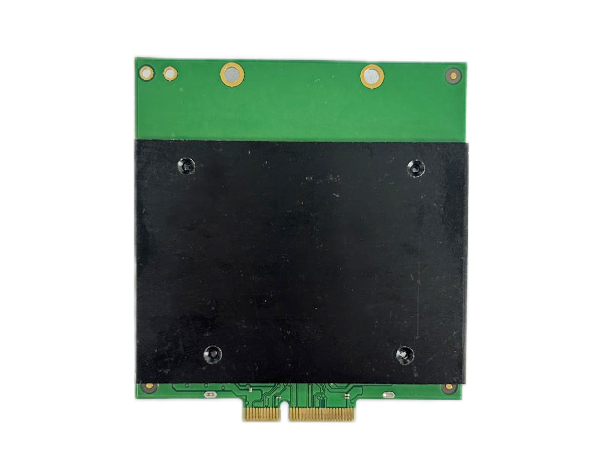

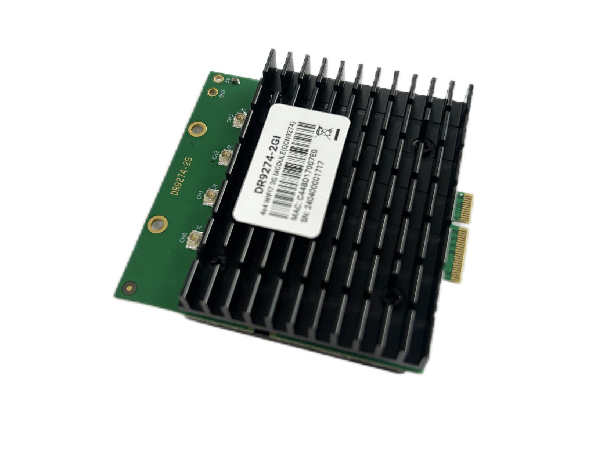

DR9274-2.4G based on QCN9274 or QCN6274 Chipset is an enterprise wireless module integrated with 4×4 MU-MIMO Single Band Wireless Module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RFenvironment in factories, warehouses establishment.
| Absolute Maximum Rating |
| Parameter | Rating | Unit |
| Operating Temperature Range | -20 ~ 70 | ºC |
| Storage Temperature Range | -40 ~ 90 | ºC |
| Operating Humidity Range | 5 ~ 95 (non-condensing) | % |
| Storage Humidity Range | 0 ~ 90 (non-condensing) | % |
| Hardware Specifications |
| Symbol | Parameter |
| Chipset | Qualcomm Atheros QCN9274/QCN6274 |
| WLAN Host Interface | PCI Express 3.0 Interface |
| System Memory | 2Mbit serial I2C bus EEPROM |
| Standard Operating Voltage | 5V |
| Operating Systems | QSDK |
| Host Interface | M.2 E Key interface with PCIe 3.0 |
| Antenna Cable / Port | 4 x UFL Connectors |
| Frequency Range | 2.4 GHz 802.11ax/be, max 20dBm per chain |
| Channel Spectrum Widths for WLAN | Supports 20/40MHz at 2.4GHz |
| Modulation Techniques | OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM,1024QAM; |
| Temperature Range | Operating: -20 °C to 70 °C, Storage: -40 °C to 85 °C |
| Humidity | Operating: 5% to 95%, Storage: Max. 90% |
| Certification | REACH & RoHS Compliance |
| Power Consumption | 18W(Normally) |
| Dimensions (WxHxD) | 30mm x 50mm x 14.5mm |
| Radio TX Specifications(5.180GHz- 7.125GHz) |
|
Operating Mode
|
Data Rate
|
TX Power
|
RX Specificatios Sensitivity
|
Tolerance
|
|
|
per Chain
|
4 Chain
|
||||
| 2.4GHz
802.11 BE ETH20 |
MCS0
|
20dBm
|
23dBm
|
TBD
|
±2dB
|
|
MCS1
|
20dBm
|
23dBm
|
TBD
|
±2dB
|
|
|
MCS2
|
20dBm
|
23dBm
|
TBD
|
±2dB
|
|
|
MCS3
|
20dBm
|
23dBm
|
TBD
|
±2dB
|
|
|
MCS4
|
19dB
|
22dBm
|
TBD
|
±2dB
|
|
|
MCS5
|
19dBm
|
22dBm
|
TBD
|
±2dB
|
|
|
MCS6
|
19dBm
|
22dBm
|
TBD
|
±2dB
|
|
|
MCS7
|
18dBm
|
21dBm
|
TBD
|
±2dB
|
|
|
MSC8
|
18dBm
|
21dBm |
TBD
|
±2dB
|
|
|
MCS9
|
17dBm
|
20dBm
|
TBD
|
±2dB
|
|
|
MCS10
|
17dBm
|
20dBm
|
TBD
|
±2dB
|
|
|
MCS11
|
17dBm
|
20dBm
|
TBD
|
±2dB
|
|
|
MCS12
|
16dBm
|
19dBm
|
TBD
|
±2dB
|
|
|
MCS13
|
16dBm
|
19dBm
|
TBD
|
±2dB
|
|
| 6GHz
802.11ax/be HT40 |
MCS0
|
20dBm
|
23dBm
|
TBD
|
±2dB
|
|
MCS1
|
20dBm
|
23dBm
|
TBD
|
±2dB
|
|
|
MCS2
|
20dBm
|
23dBm
|
TBD
|
±2dB
|
|
|
MCS3
|
20dBm
|
23dBm
|
TBD
|
±2dB
|
|
|
MCS4
|
19dB
|
22dBm
|
TBD
|
±2dB
|
|
|
MCS5
|
19dBm
|
22dBm
|
TBD
|
±2dB
|
|
|
MCS6
|
19dBm
|
22dBm
|
TBD
|
±2dB
|
|
|
MCS7
|
18dBm
|
21dBm
|
TBD
|
±2dB
|
|
|
MSC8
|
18dBm
|
21dBm |
TBD
|
±2dB
|
|
|
MCS9
|
17dBm
|
20dBm
|
TBD
|
±2dB
|
|
|
MCS10
|
17dBm
|
20dBm
|
TBD
|
±2dB
|
|
|
MCS11
|
17dBm
|
20dBm
|
TBD
|
±2dB
|
|
|
MCS12
|
16dBm
|
19dBm
|
TBD
|
±2dB
|
|
|
MCS13
|
16dBm
|
19dBm
|
TBD
|
±2dB
|
|
| Version |
| NO | Name | Mainchip |
| 1 | DR9274-2.4G | QCN6274 |
| 2 | DR9274-2.4GI | QCN9274 |
