PRODUCT DESCRIPTION

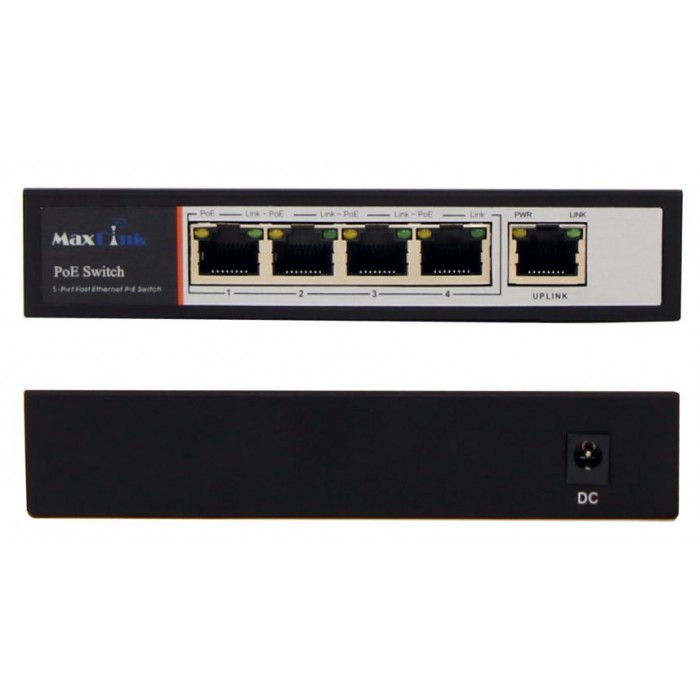

PSAT-5-4P is 5 port 10/100Mbps unmanaged switch with 4 PoE ports. Switch automatically detecting and powering 802.3af/at (up to 30W/port) devices on 1 – 4 ports. 5th port is normal ethernet ports without PoE functionality as uplink port. Total PoE budget for devices is 96W with external power adapter 48V/2A, which is included the package.

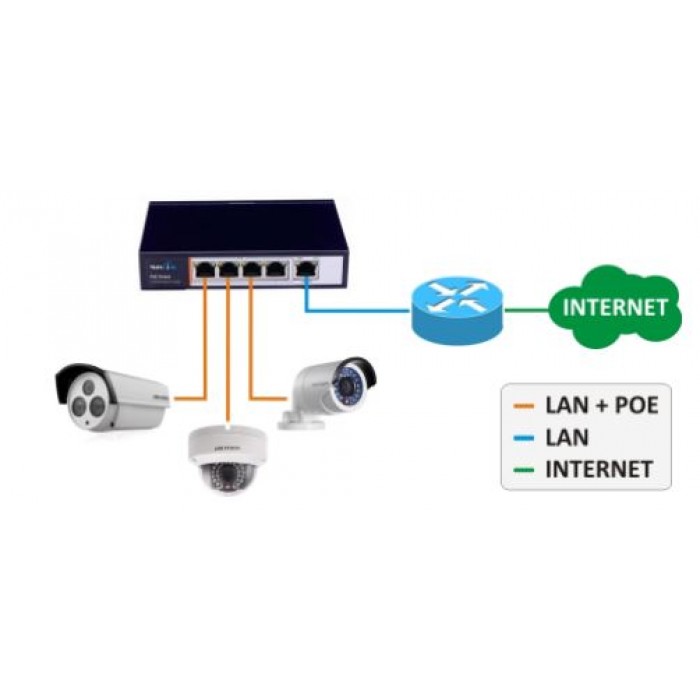

With this switch you can power wide range of IP cameras, VoIP telephones, WiFi AP and other devices supporting 802.3af/at PoE standard.
PACKAGE CONTAINS
- Device
- Power adapter 48V/2A
- Power cord
TECHNICAL PARAMETERS
| Connectors and Interfaces | |
| LAN speed: | (5) 10/100Mbps |
| General | |
| MAC address table: | 1000 |
| Physical characteristics | |
| Design: | Desktop |
| Fanless: | Yes |
| Chassis design: | Metal |
| Operating temperature [°C]: | 0 up to 45 |
| Depth [mm]: | 91 |
| Width [mm]: | 140 |
| Height [mm]: | 28 |
| Power | |
| Max. power consumption [W]: | 60 |
| Power type: | DC connector |
| PoE standards: | 802.3af, 802.3at |
| PoE ports: | 4 |
| PoE budget [W]: | 96 |
| Power via connector/terminal: | 48V / 2A |
