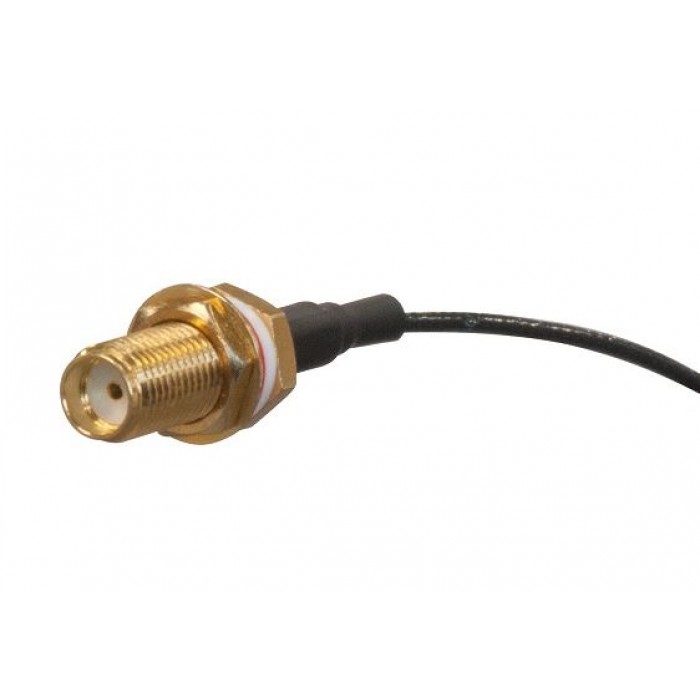

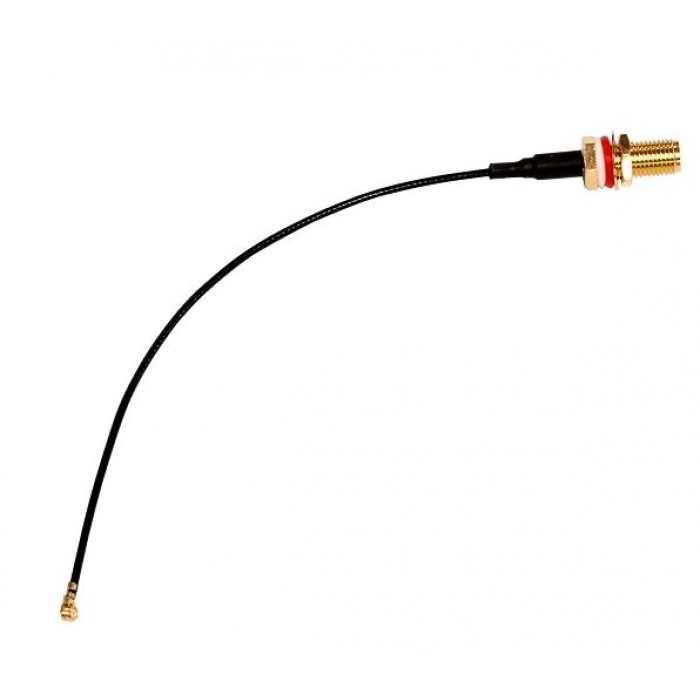

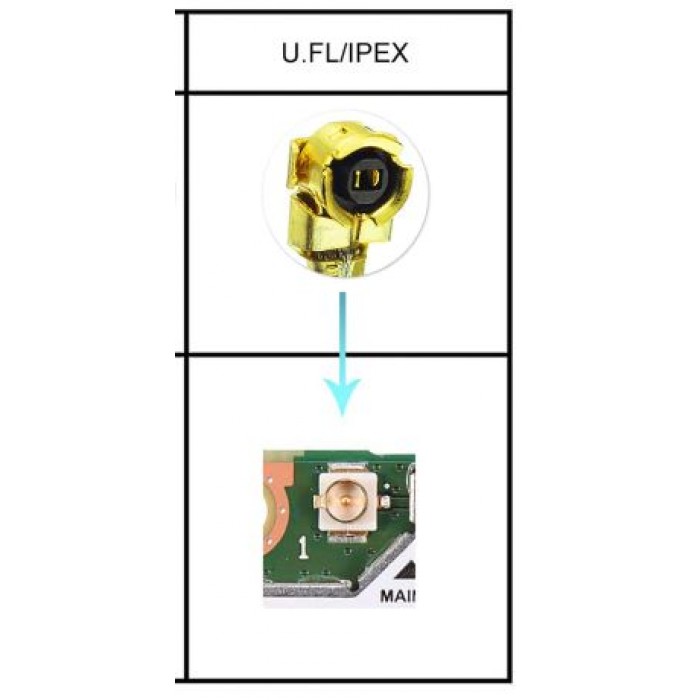

5G 4G LTE Pigtail U.FL-LP-040 cable Ipex 1.0 Female / SMA Female 15cm, for U.FL-R-SMT-1 miniPCIe modules, 524WIFI ProPlus serie

Description

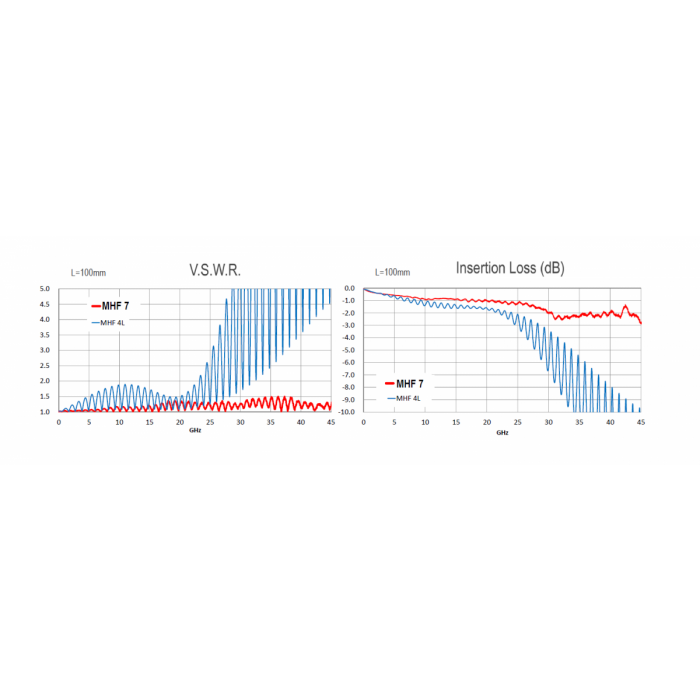

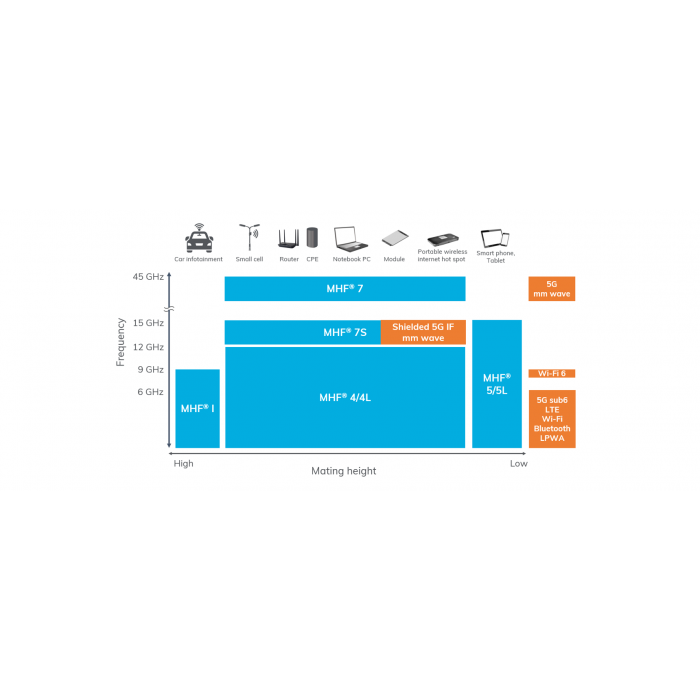

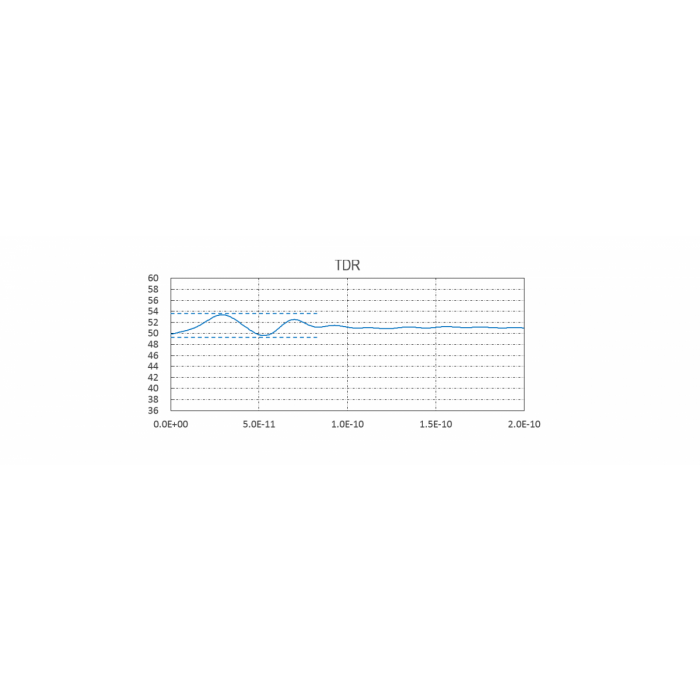

MHF ® 7 Micro RF connector for mmWave, ideal for 5G applications, VSWR 1.68 Max at 45 GHz in small 2.1 x 2.0 mm footprint. Excellent electrical performance through 45 GHz Minimum impedance variation MHF 7 plug available micro-Coax O.D. (AWG) : 1.13 mm (30) Excellent electrical performance through 45GHz Product name MHF 7 Maximum height (mm) 1.4 Outside dimension of receptacle(mm) 2.1 x 2.0 Applicable wire gauge O.D. 1.13 mm / AWG 30 Frequency DC～45 GHz (Nominal) VSWR (L=100 mm) (Nominal) DC～5 GHz 1.20 max. 5 GHz～10 GHz 1.35 max. 10 GHz～15 GHz 1.50 max. 15 GHz～20 GHz 1.68 max. 20 GHz～45GHz 1.68 max. Service temp. (Celsius) -40 degree ～ +90 degree Characteristic impedance 50 ohm Rated voltage AC60V Contact resistance 20m ohm max. Withstand voltage AC200V/min Insulation resistance 500M ohm min./DC100V L=100mm L=100mm MHF 7 -10.0 -9.0 -8.0 -7.0 -6.0 -5.0 -4.0 -3.0 -2.0 -1.0 0.0 0 5 10 15 20 25 30 35 40 45 GHz MHF 7 MHF 4L MHF 7 Contact your sales representative for more detailed information. 202004R0 MHF 7 plug available micro-Coax O.D. (AWG) : 1.13 mm (30) Minimum impedance variation 36 38 40 42 44 46 48 50 52 54 56 58 60 0.0E+00 5.0E-11 1.0E-10 1.5E-10 2.0E-10 Coax O.D. (Center Conductor AWG) Mating Height 1.4 mm max. 2.00 mm (26) 1.80 mm (30) 1.37 mm (30) 1.32 mm (32) 1.13 mm (30) ○ 1.13 mm (32) 0.95 mm (33) 0.81 mm (33) 0.81 mm (36) 0.64 mm (36) 0.48 mm (38) FPC Receptacle MHF 7 receptacle MHF ® 7
